Panoramic Padel Court Measures 10x20mt - CP15 | Professional

The features of our Panoramic Padel Court Measures 10x20mt - CP15 | Professional

The Panoramic Padel Court is the ideal choice for those who want a professional-level, robust, modern and aesthetically impactful padel facility. The structure stands out for its maximum panoramic visibility, thanks to the absence of the corner pillar and the use of 12 mm tempered glass, compliant with the EN12150-2:2004 standard. There are 18 1996×3000 mm glass panels that ensure strength and transparency.

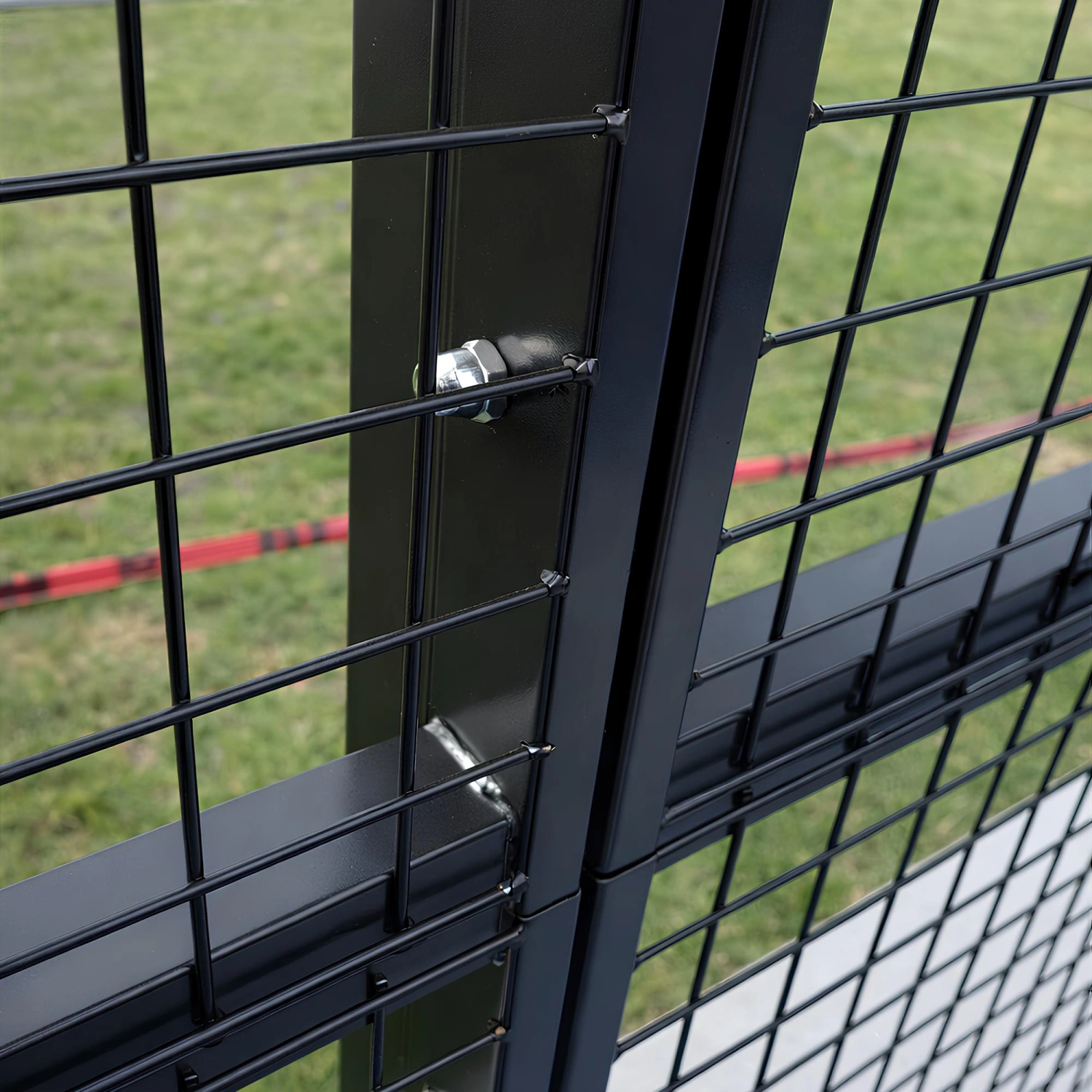

The posts and net are constructed of steel, with 4 x 100×100×3 mm light poles and 8 x 100×50×3 mm net poles. The frame is made of 30×50×3 mm Q235 square tube. The wire mesh consists of 46 panels with 4 mm wire and 50×50 mm mesh, framed in curved rod.

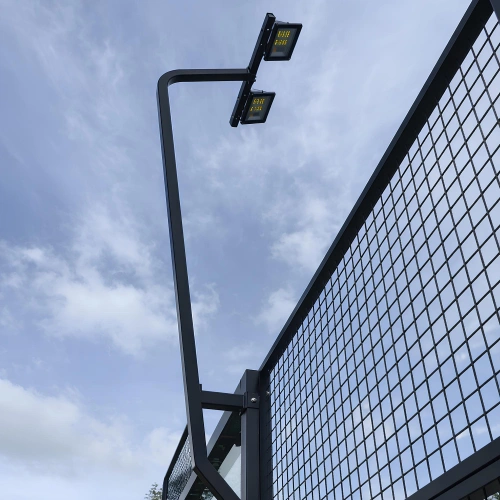

LED lighting is entrusted to 4 towers equipped with 8 200W floodlights, guaranteeing a brightness of 300 Lux and IP65 degree of protection. Standard light poles reach 3 meters but versions up to 6 meters with optional style C are also available. A KDK monofilament synthetic turf surface completes the installation: height 12 mm, density 52,500 dots/m², PP support + mesh and latex coating. Ø1.6mm–1.25mm quartz sand ensures an even and optimal fill for playability. Every component, from 304 stainless steel bolts to glass and rubber fittings, is chosen to offer durability, reliability and safety over time.

To complete the offer, at the customer's request , the court can be built in compliance with the official FIT (Italian Tennis and Padel Federation) and FIP (Federación Internacional de Padel) standards. All materials are designed to withstand the stresses of intensive use and bad weather, ensuring long-term performance.

How and where to use our Panoramic Padel Court Measures 10x20mt - CP15 | Professional

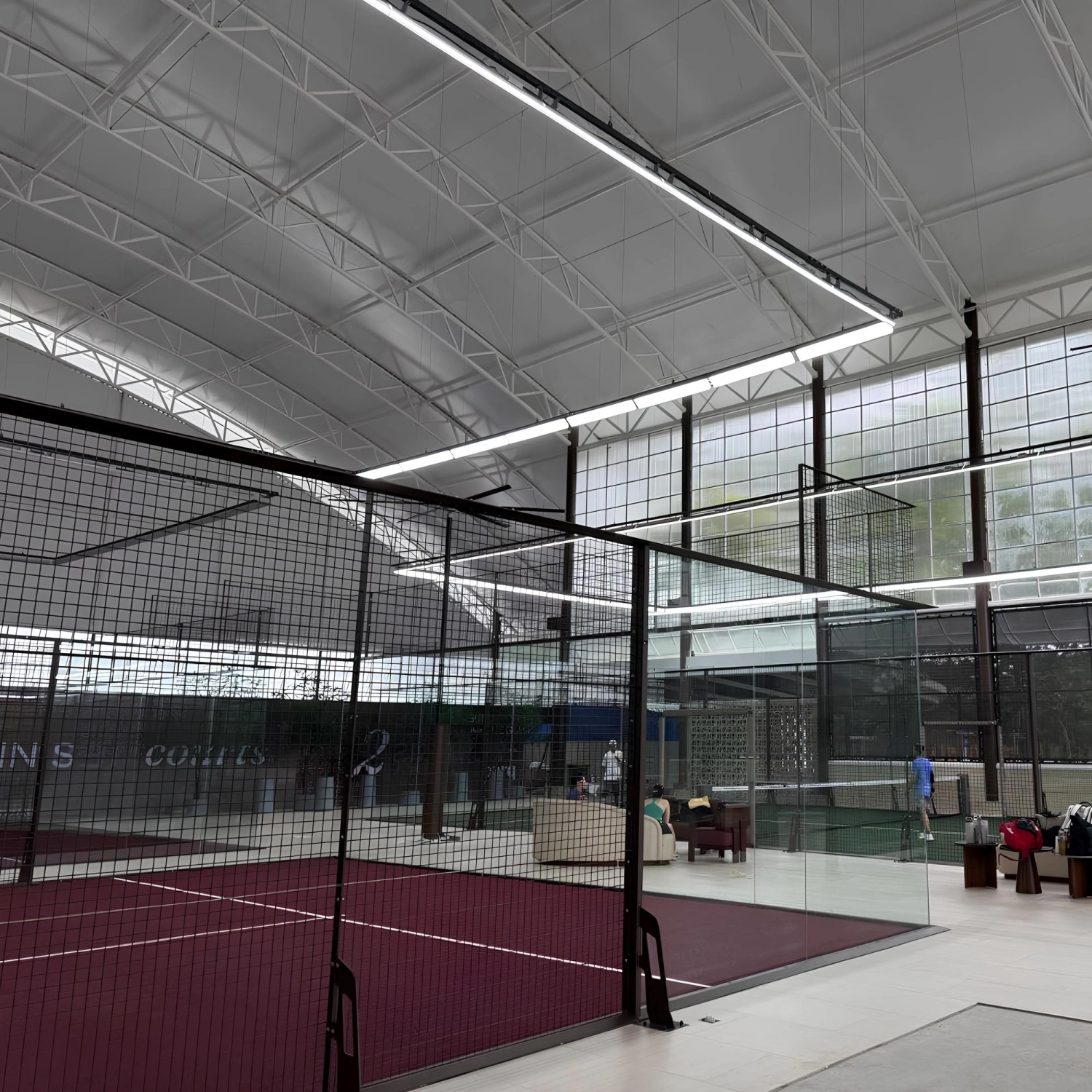

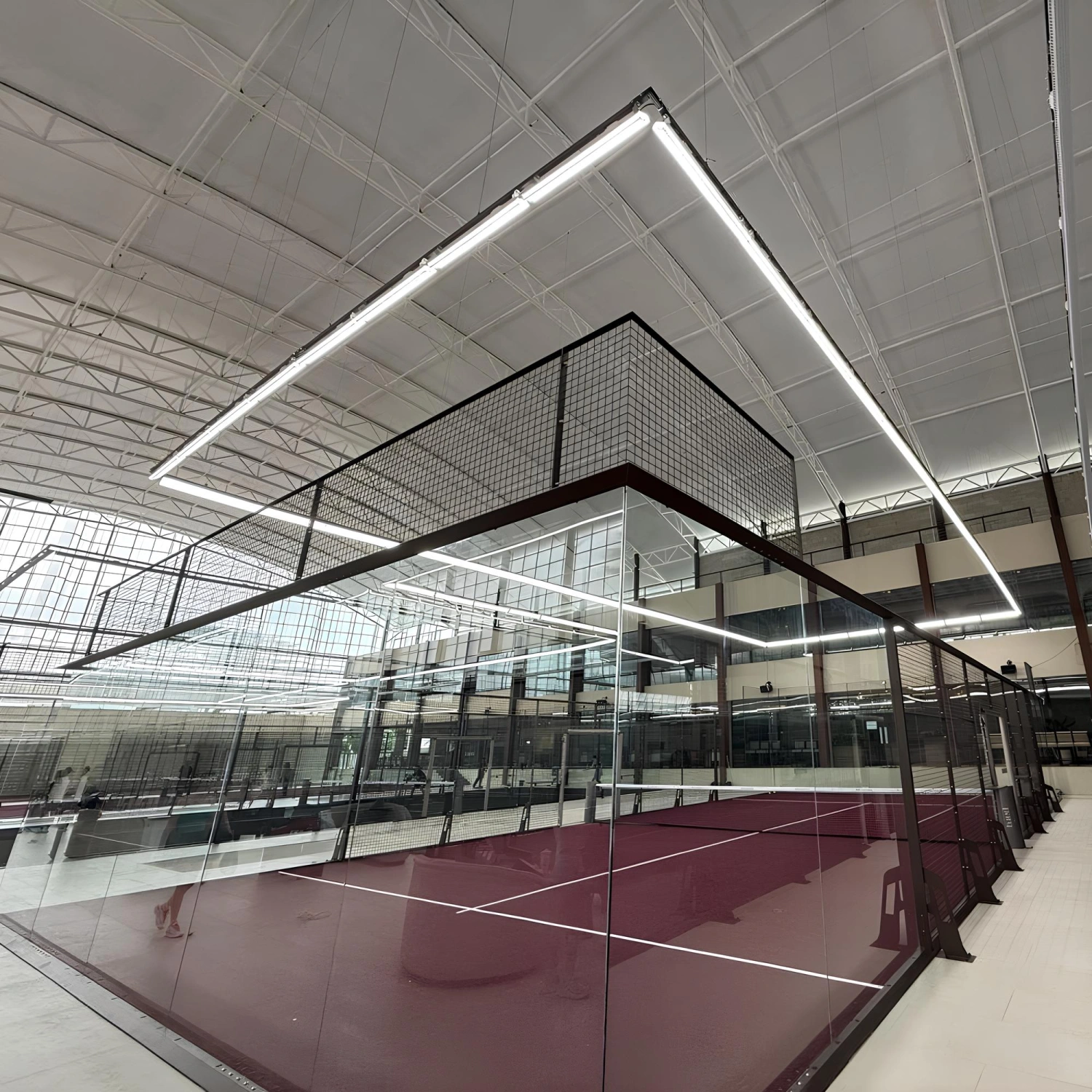

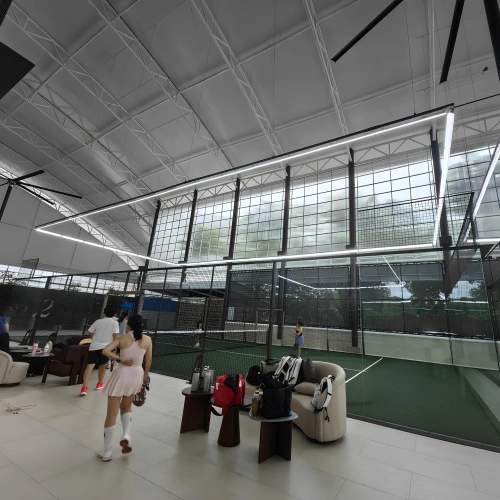

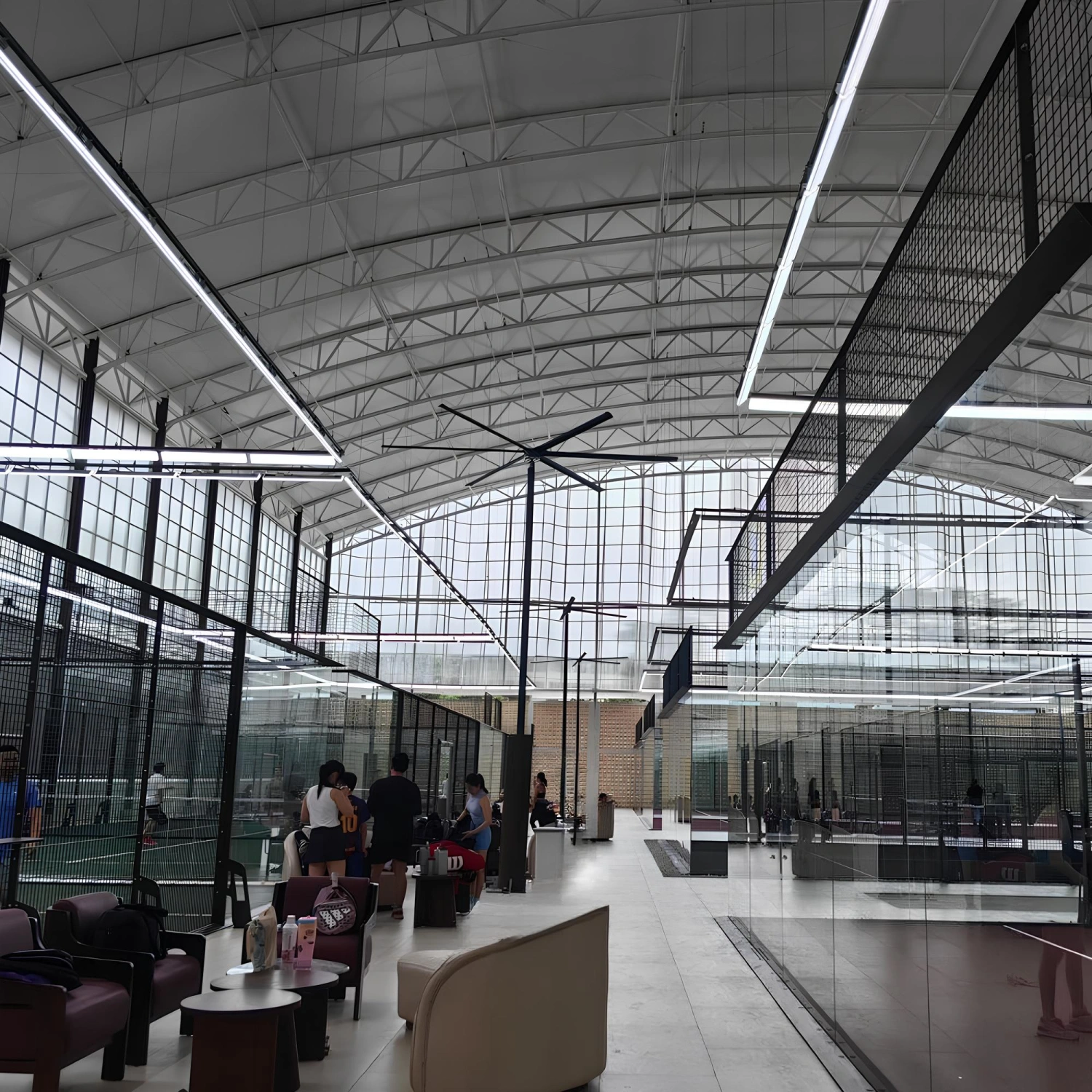

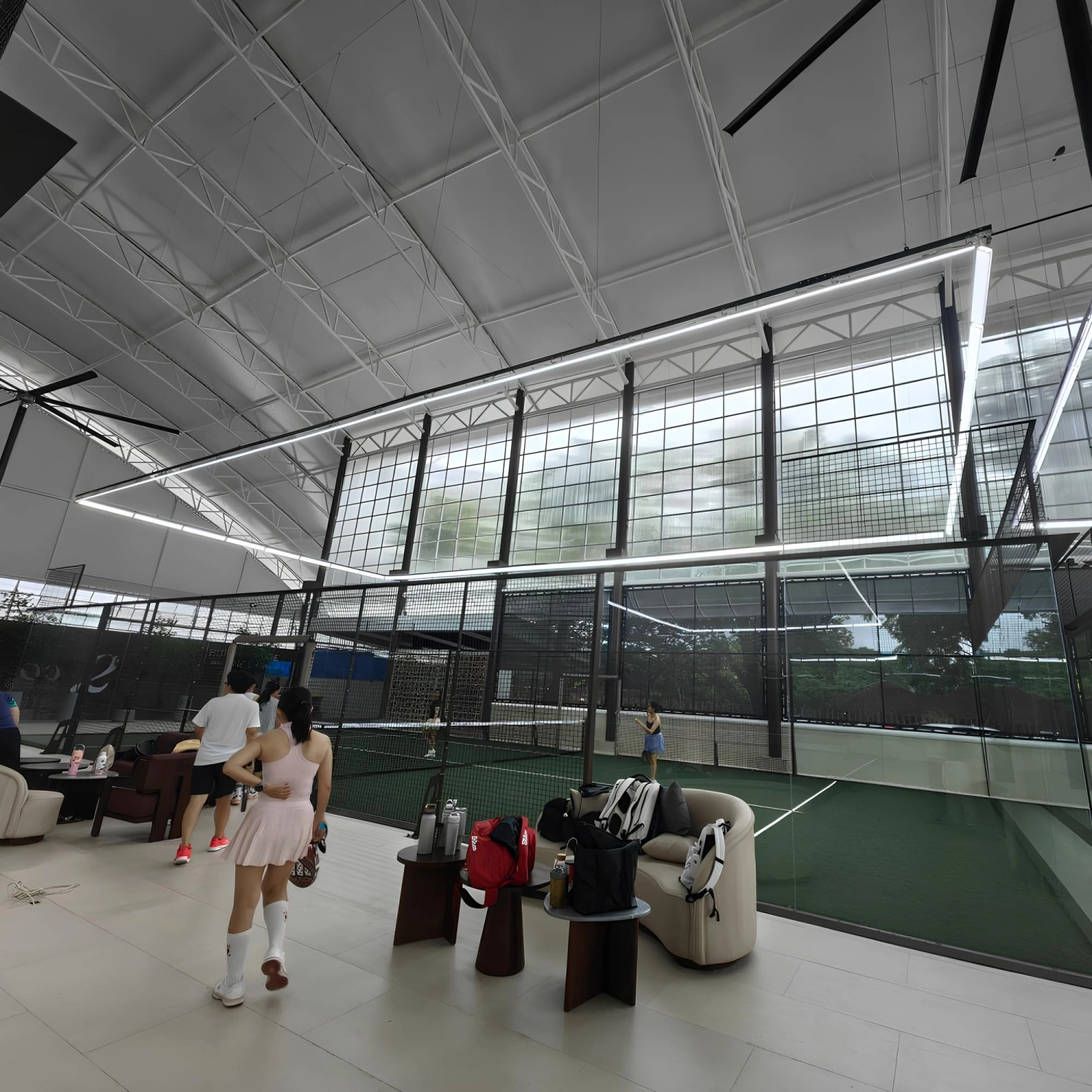

The Panoramic Padel Court is designed for installations in professional sports centers , private clubs, hotels, resorts, bathing establishments and public areas dedicated to sports. Thanks to its robust and modular structure, the court is perfectly suited to both indoor and outdoor installations. The quality of the materials used — such as galvanized Q235 steel and tempered glass — ensures resistance to atmospheric agents, mechanical stress and wear over time.

The laying of the synthetic turf carpet, in compliance with the EN14041:2008 standard, guarantees excellent bounce and grip performance, ideal for amateur matches and competitive tournaments. The uniform height of the net, adjusted to 0.88 m in the middle and 0.92 m at the ends, ensures full compliance with the official rules of play. The powerful and low-consumption lighting allows the court to be used even in the evening, promoting an excellent playing experience at any time of the day.

The court is customizable in every aspect, from the design to the choice of materials. It is made of hot-dip galvanized and powder-coated steel, making it durable and suitable for outdoor use, even in seaside areas. In addition, it can also be used indoors without compromising its quality and durability. On request, you can add other accessories, change the components, sizes, colors and even add the customer's logo. The field is 100% customizable, guaranteeing tailor-made solutions for every need.

Why choose our Panoramic Padel Court Measures 10x20mt - CP15 | Professional

Choosing the Panoramic Padel Court means relying on a complete professional solution, designed to ensure maximum aesthetic, functional and sporting performance. Every detail is designed to meet the highest criteria in terms of safety, quality and design. From the transparency and robustness of the tempered glass to the stability of the mesh and steel structure, up to the high-performance KDK synthetic turf: each element is the result of a careful selection and complies with European regulations.

The field is designed to last over time and require minimal maintenance, even in demanding weather conditions. The structure without a corner pillar ensures an unobstructed view and a modern look, which is highly appreciated by architects, planners and investors in the sports sector.
A unique product, entirely Designed in Italy, where style, functionality and passion come together. In addition, with a surcharge you can request the assembly service available throughout Italy and abroad, even on holidays. We will take care of a quick and stress-free installation.
