Padel Cover for All Seasons - CP50 | Professional

Features of Our All-Season Padel Cover - CP50 | Professional

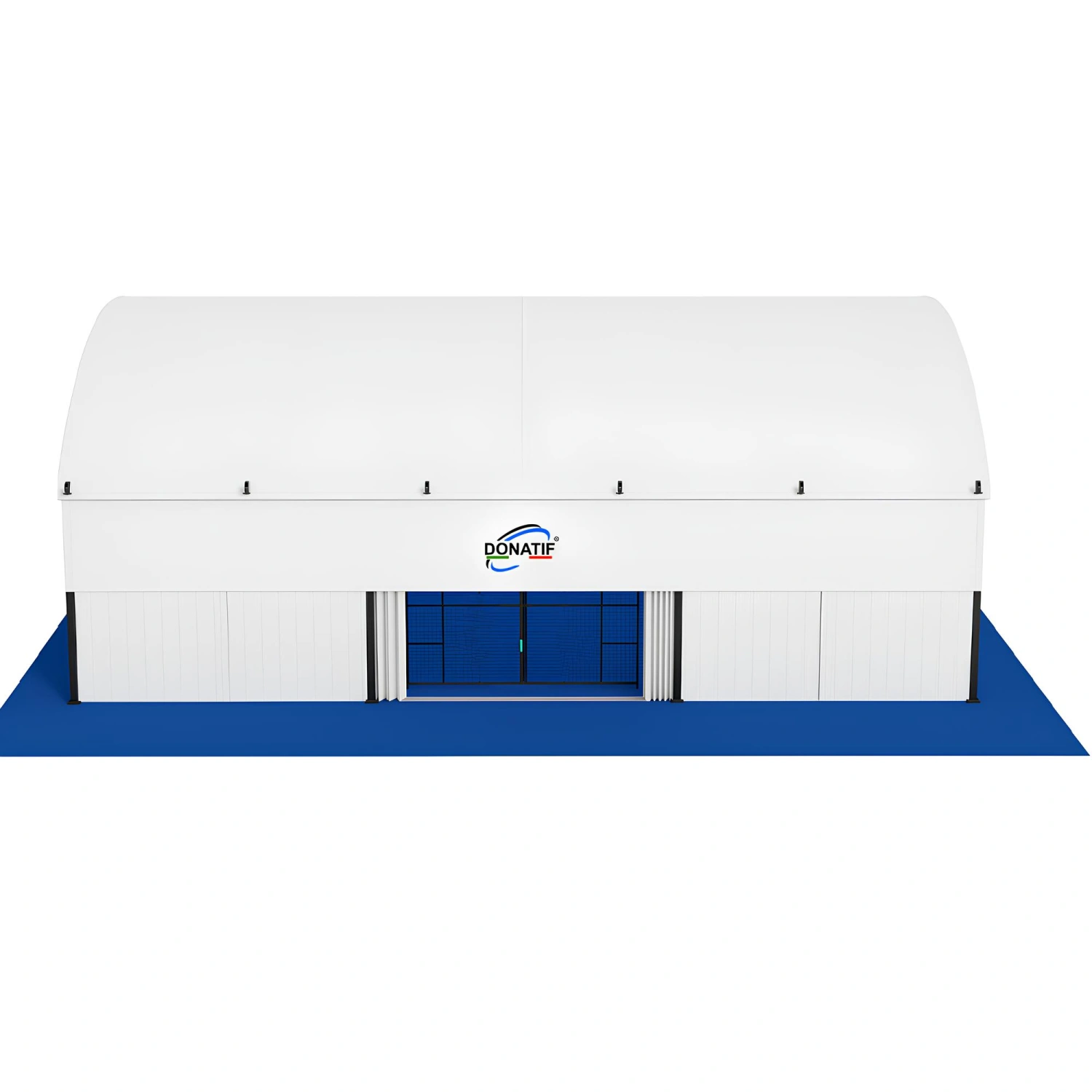

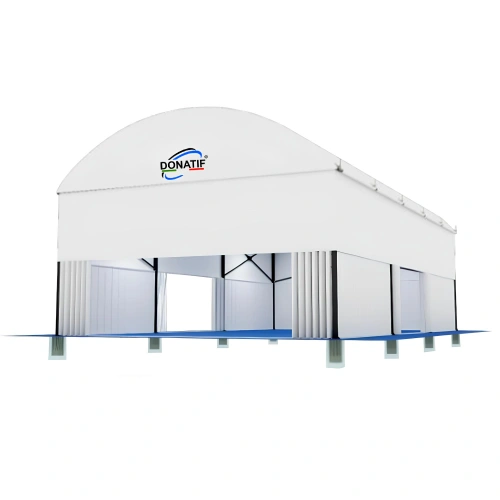

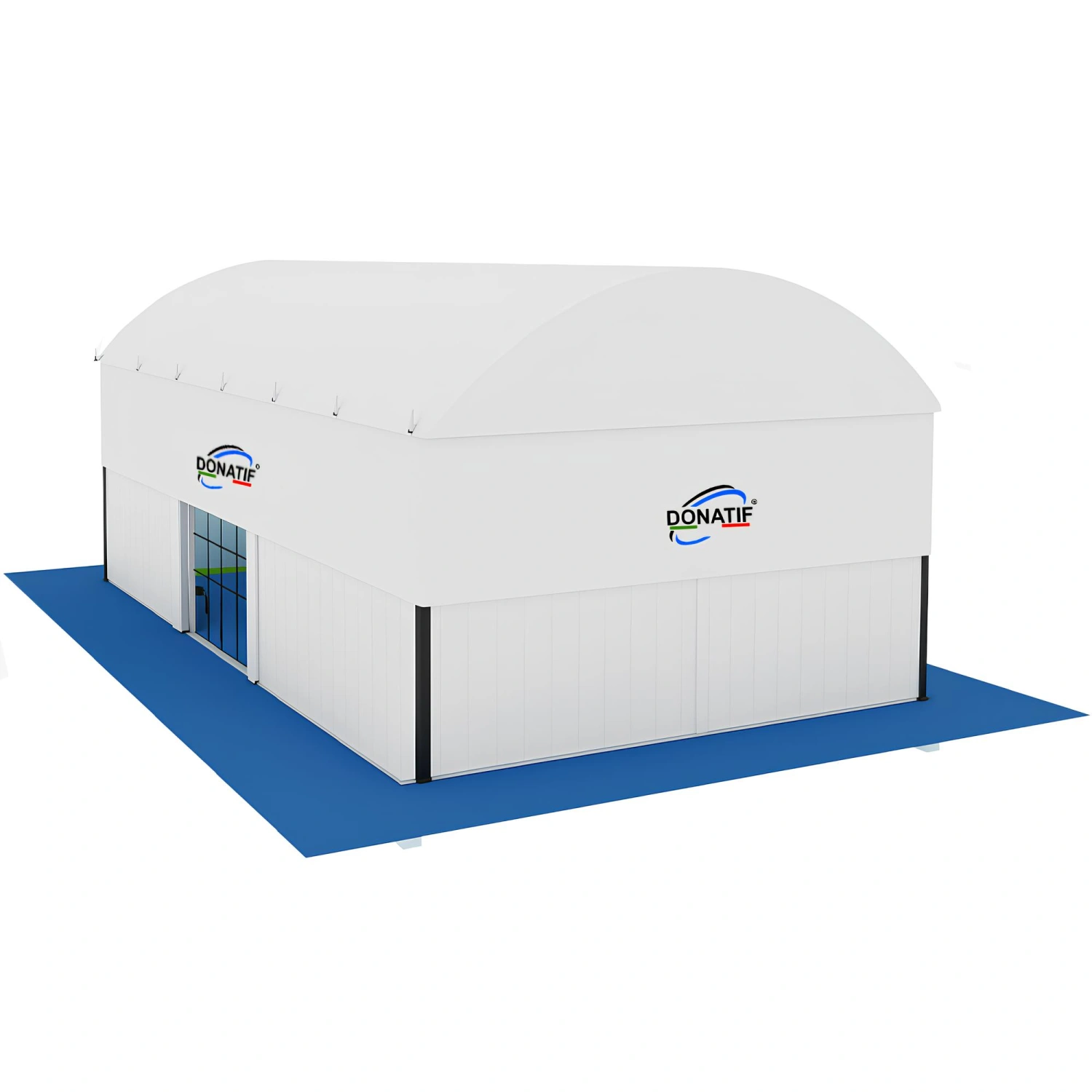

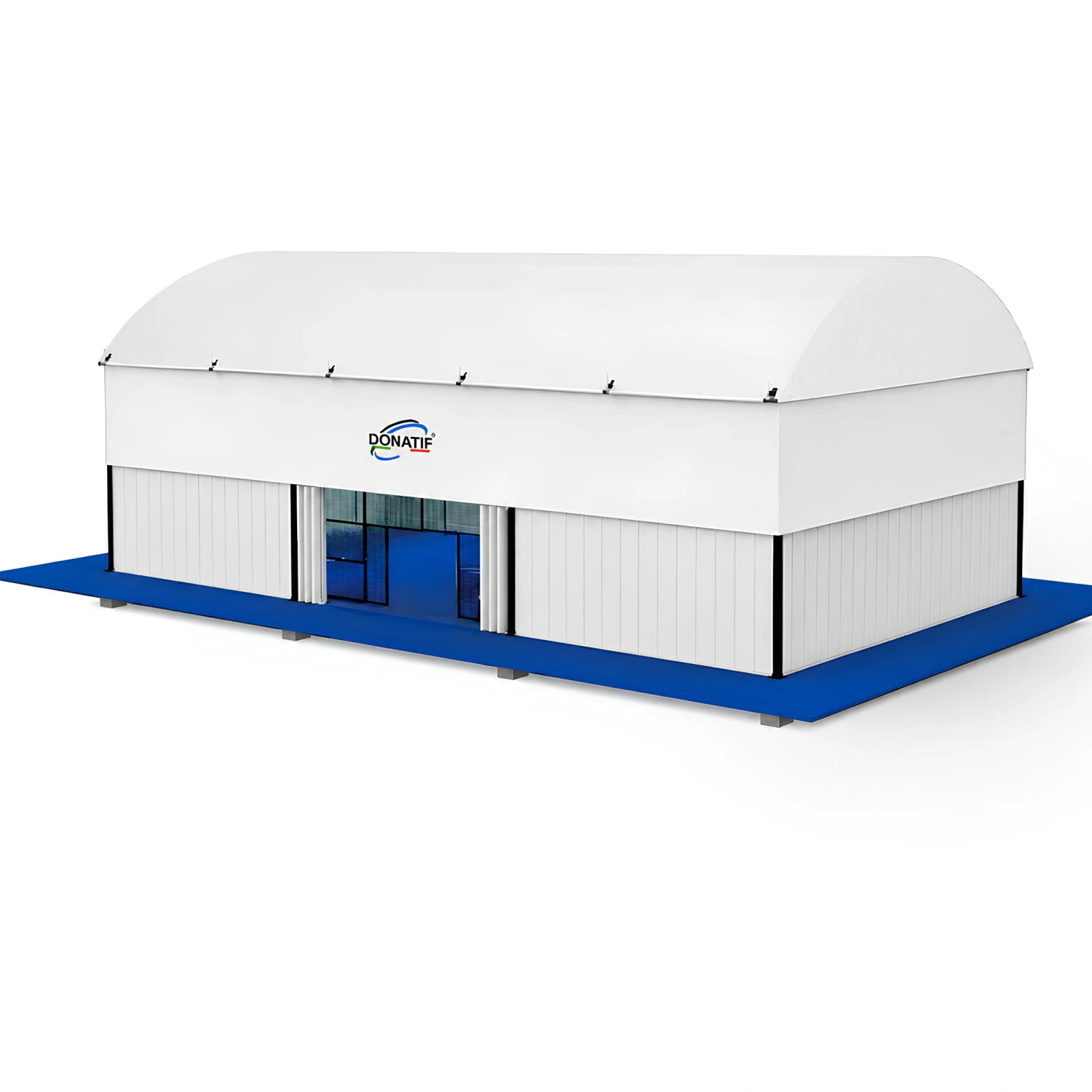

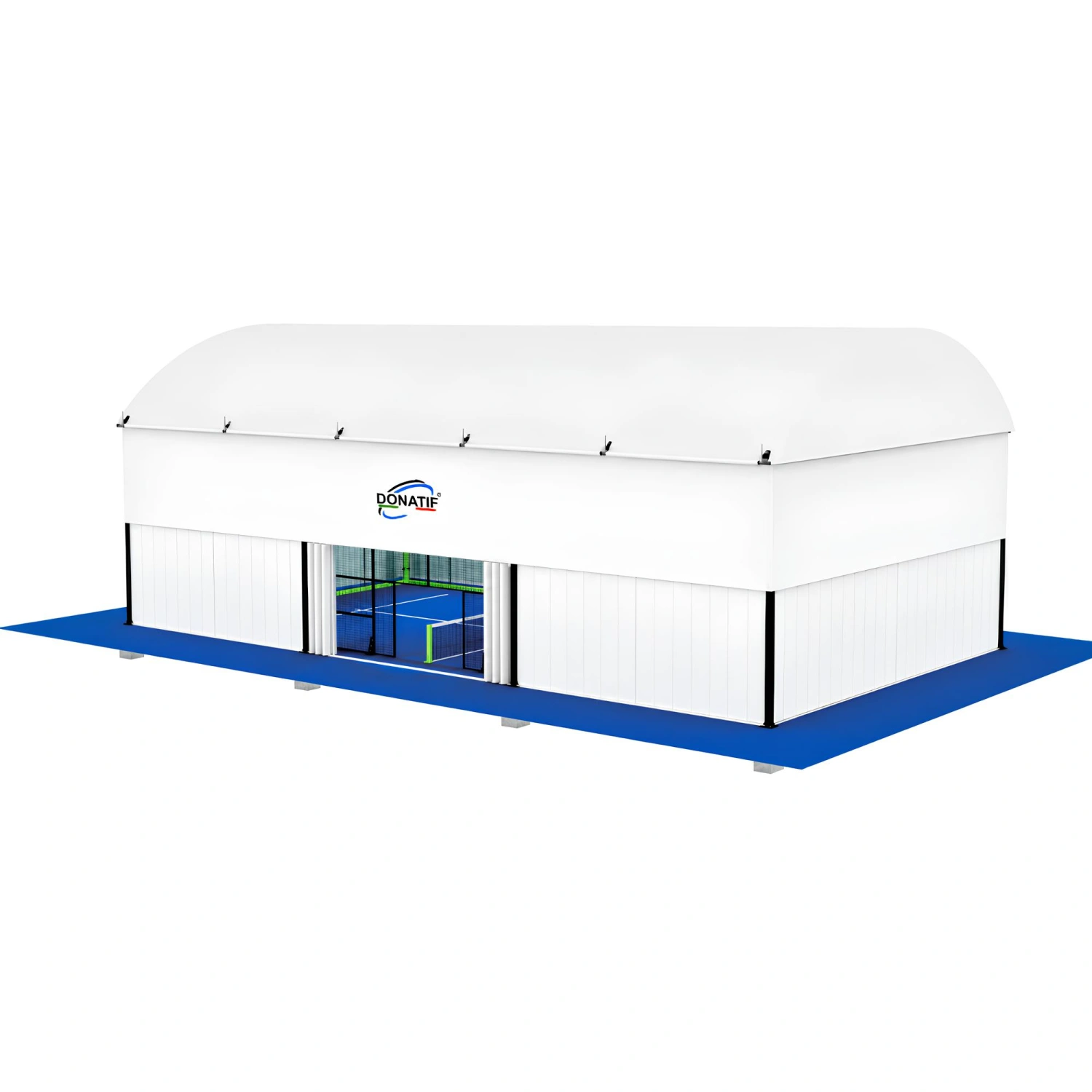

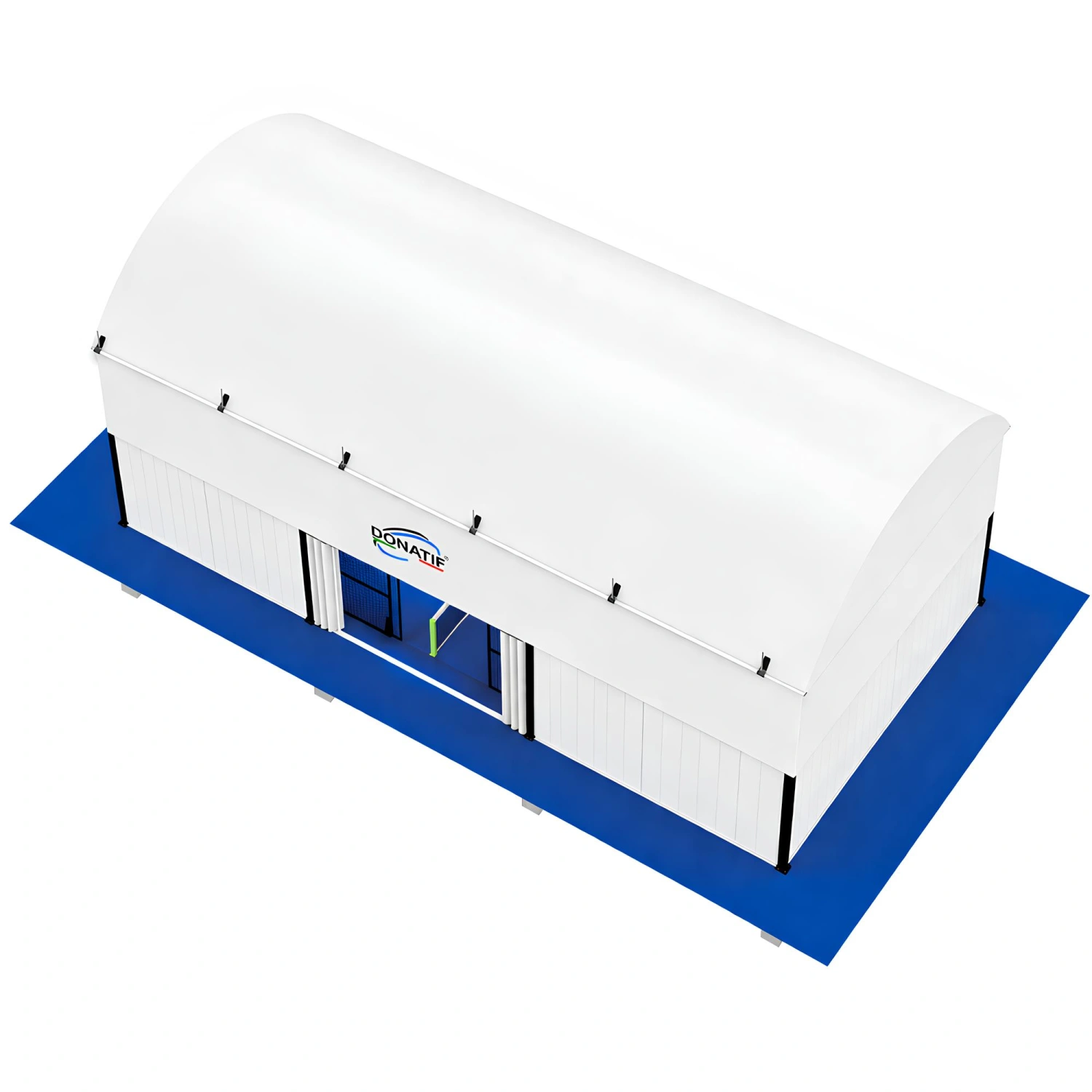

The All-Season Padel Cover is a professional structure for padel courts, designed to ensure maximum strength, protection, and durability in all seasons.

The varying heights (6 m at the sides, 8.8 m in the center) allow for a functional, well-ventilated curved canopy. The 750 g/m² double-coated PVC canopy provides total protection from rain, wind, and UV rays. The optional 550 g/m² side walls can be installed on sliding tracks, offering flexibility in use and a complete enclosure when needed.

Notes:

• This product refers exclusively to the padel court cover. It does not include the complete padel court, nor the flooring, net, or other structural components of the court itself. This cover is designed to be installed on existing courts or those under construction, and is ideal for protecting the structure from the elements, improving its durability and usability year-round. For information or complete quotes regarding turnkey padel courts, please contact us directly.
• To round out the offering, upon customer request, the covering can be built in compliance with the official standards of the FIT (Italian Tennis and Padel Federation) and the FIP (International Padel Federation). All materials are designed to withstand the stresses of intensive use and inclement weather, ensuring long-term performance.

How and Where to Use Our All-Season Padel Covering - CP50 | Professional

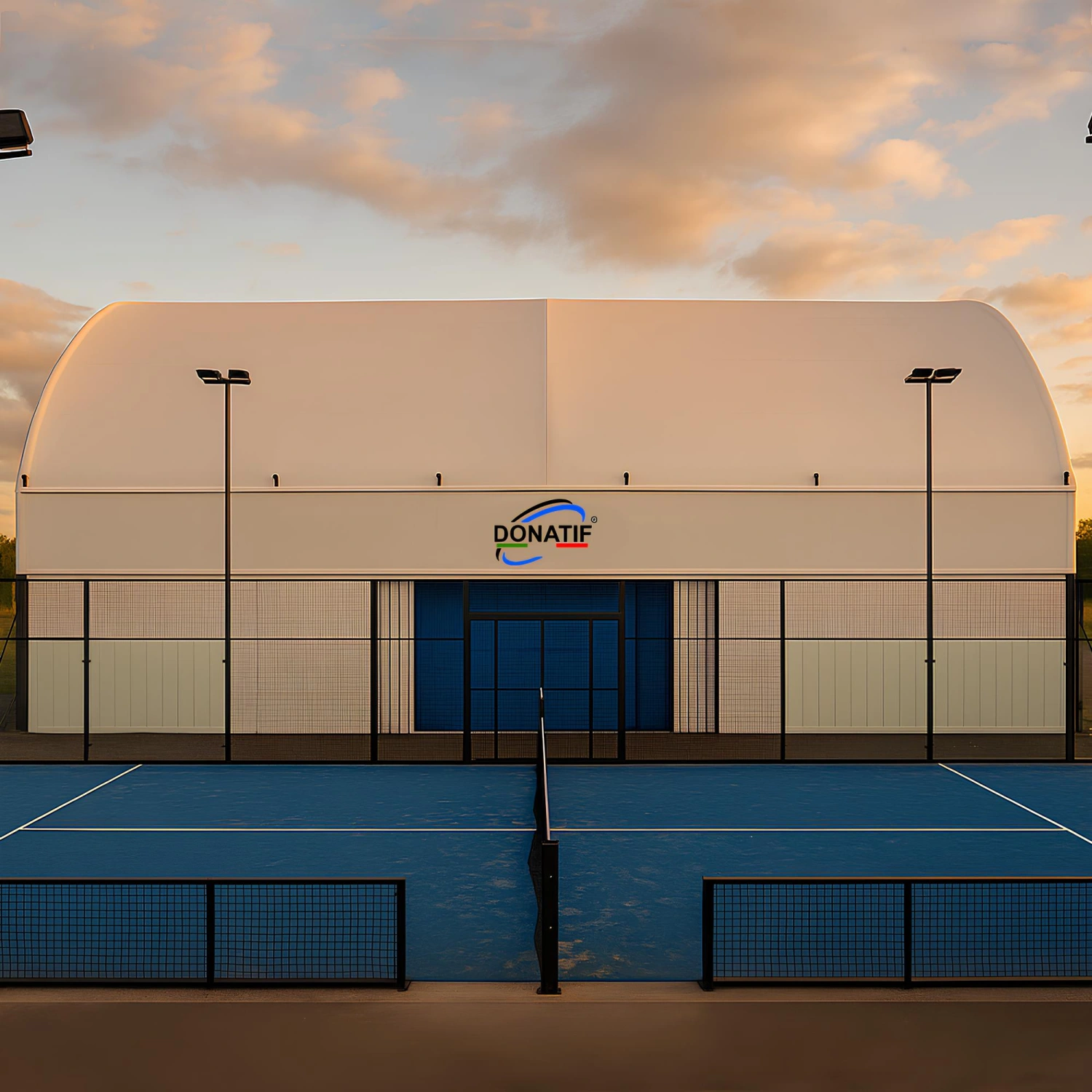

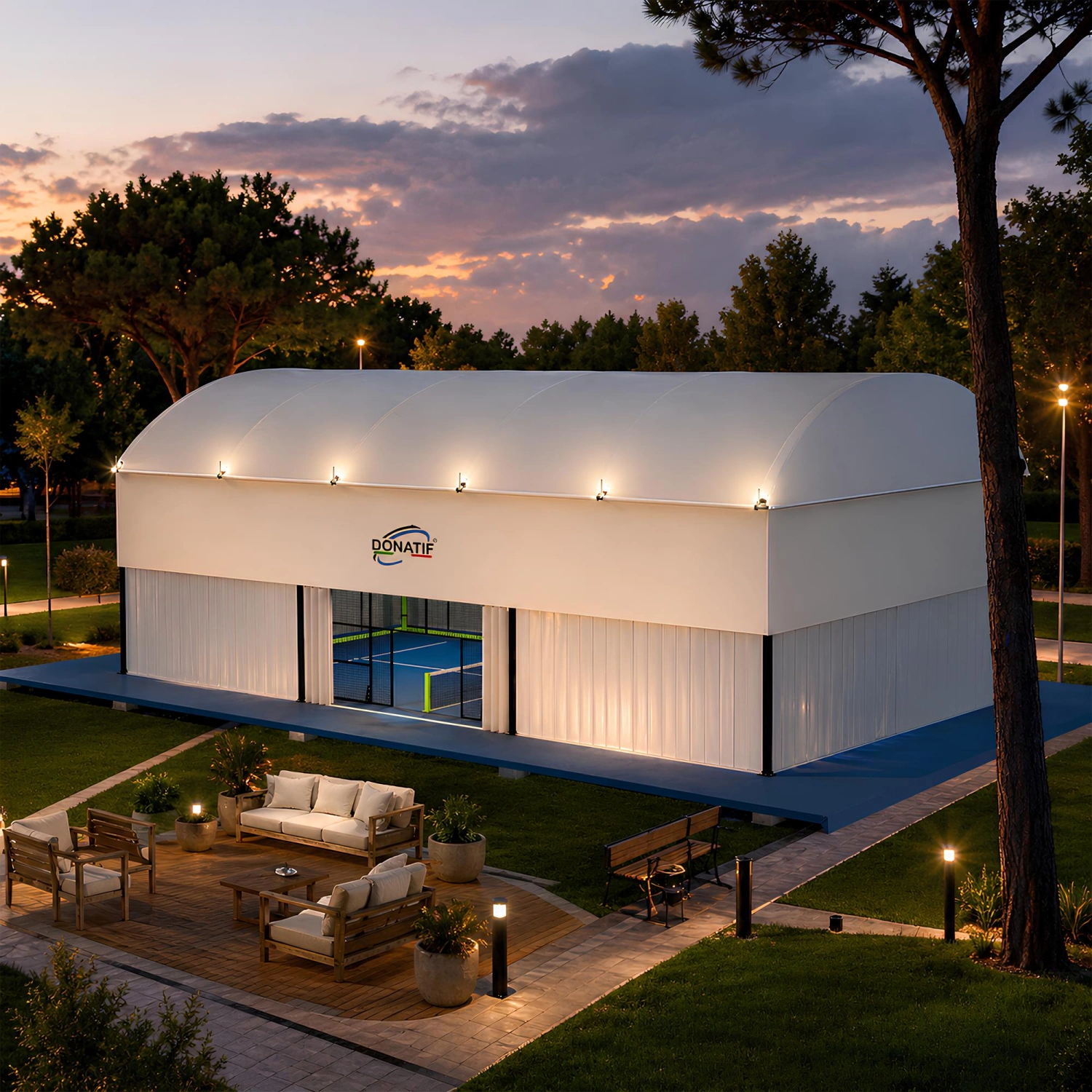

’s All-Season Padel Cover is designed for courts installed in indoor and outdoor sports centers that wish to offer padel courts operational year-round, regardless of weather conditions. Perfect for areas exposed to rain, strong winds, or intense sun, it ensures uninterrupted play and protection for athletes and spectators.

It can be easily integrated into existing Donatif structures, offering a modular and professional solution. Its versatile installation makes the CP50 suitable for both temporary and permanent setups. It is also ideal for those managing sports facilities in tourist destinations or areas with high seasonal traffic, where reliable and sturdy covers are essential.
The padel court roofing has undergone an optimized structural design, developed to ensure adequate levels of safety and stability under primary load conditions, including snow, wind, earthquakes, and foundation loads.

The main columns are designed with a cross-section of 150x150x6 mm. In the snow-load compression analysis, the utilization factor is approximately η = 0.45, with an axial resistance of N_Rd = 77.3 kN, which exceeds the design value of 48.4 kN.The use of 12 columns instead of 8 also allows for a more even distribution of loads, reducing the stress on each element. The design requirement is therefore satisfied.

For the compression-bending verification due to the combination of snow and wind loads—again using a 150x150x6 mm cross-section and M_Rd = 24.0—the utilization coefficient falls approximately within the range η = 0.65–0.80, with an optimized value of η = 0.84. The introduction of vertical bracing reduces the bending moment by approximately 40–60%, while the presence of 12 columns allows for better distribution of the forces. This verification is also satisfied for a structure height of approximately 6 m.

The purlins are designed with a cross-section of 100x100x4 mm and have a utilization factor of η = 0.75, with the verification successful. The vertical bracing is verified with η = 0.15, while the roof bracing has a utilization factor well below unity, η << 1. The roof membrane is also well within the verification limits, with η = 0.04.

The structural connections considered are also found to be adequate. Specifically, the purlin-beam joint has a utilization factor of η = 0.04, while the bracing joint has η = 0.26. Both verification criteria are satisfied.

With regard to seismic behavior, the column has a utilization factor of η = 0.14, indicating a substantial margin relative to the design limit.

The foundation configuration was optimized by changing from an initial solution consisting of 8 footings measuring 80x80x120 cm to a solution with 12 footings measuring 120x120x150 cm. Each footing has a weight W_footing = 54 kN, which exceeds the tensile force of 32.7 kN. The uplift verification is therefore satisfied, with a safety factor FS = 2.73. Longitudinal connecting beams between the plinths are also provided to improve the overall stability of the foundation.

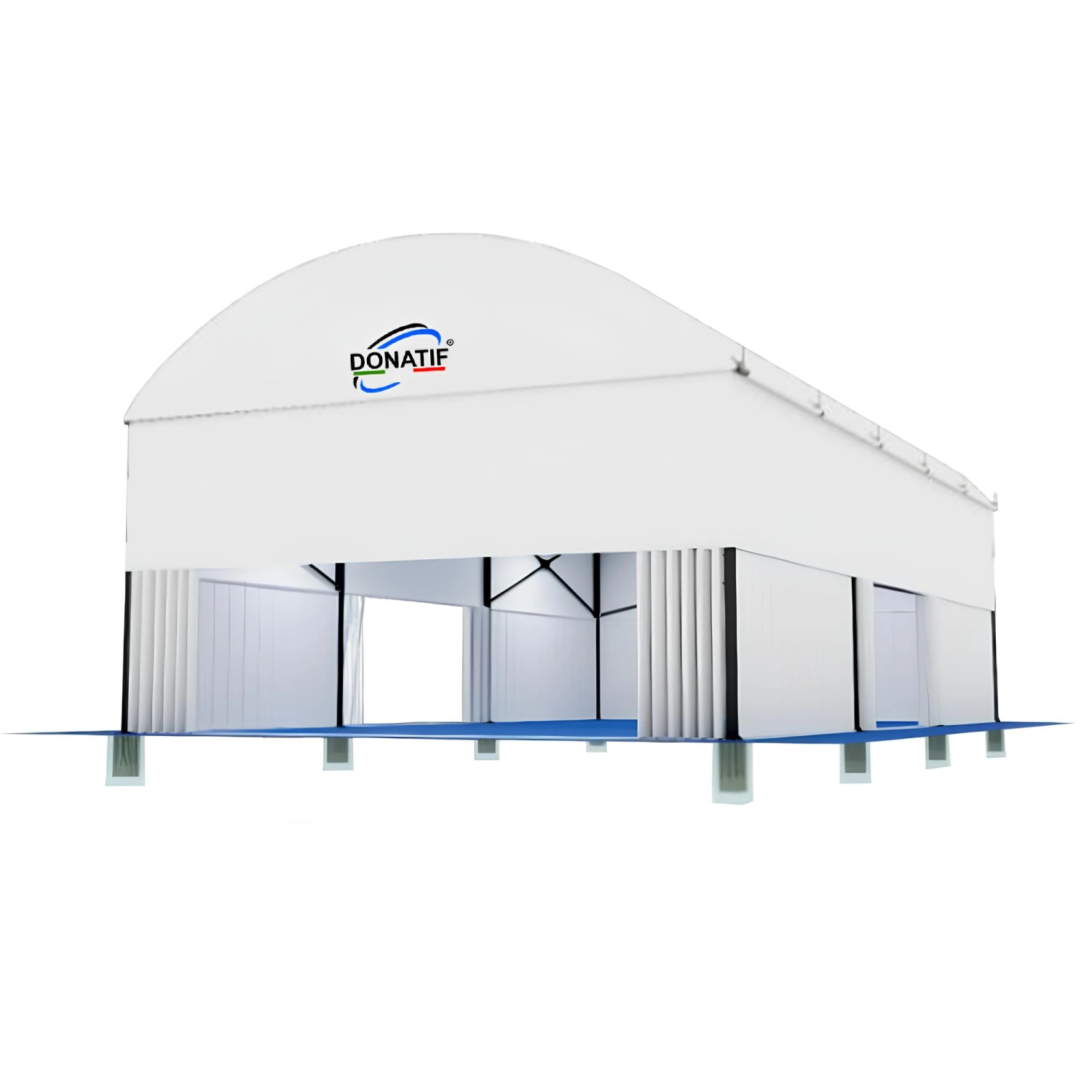

The side panels can be fully opened and folded to the side, allowing the structure to open completely and ensuring maximum ventilation and flexibility of use according to needs. Every aspect of the canopy is customizable, from the design to the choice of materials. It is made of hot-dip galvanized and powder-coated steel, making it durable and suitable foroutdoor use, even in beach areas. Furthermore, it can also be used indoors without compromising its quality and durability. Upon request, you can add additional accessories, modify components, dimensions, and colors, and even add the customer’s logo. The court is 100% customizable, ensuring tailor-made solutions for every need.

Why Choose Our All-Season Padel Cover - CP50 | Professional

Choosing the All-Season Padel Cover means investing in a durable, versatile structure designed to last. Made with certified materials and high-quality steel profiles, it guarantees high performance over the long term. The PVC used for the cover is flame-retardant, waterproof, and UV-resistant, making it ideal for intensive use in professional sports settings.

The dimensions and configuration are designed to maximize playing space, while the optional side walls ensure flexible climate control. Furthermore, the CP50 is designed to be fully compatible with other structures Donatif, offering a high level of customization.

A unique product, entirely Designed in Italy, where style, functionality, and passion come together. Additionally, for an extra fee, you can request our installation service, available throughout Italy andabroad, even on holidays. We’ll take care of a quick and stress-free installation.
