Features of our 10x20mt Super Panoramic Padel Court - CP15 | Professional

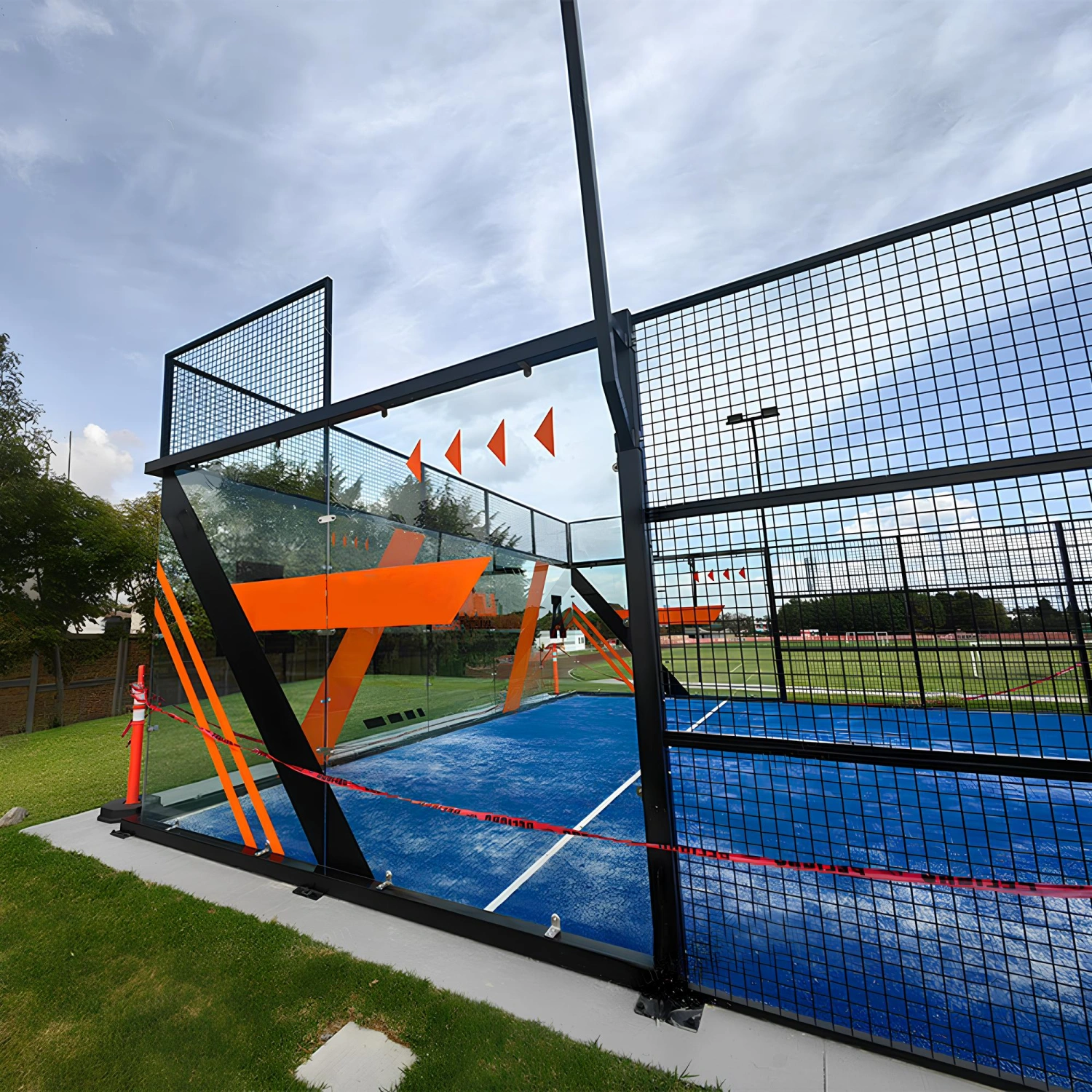

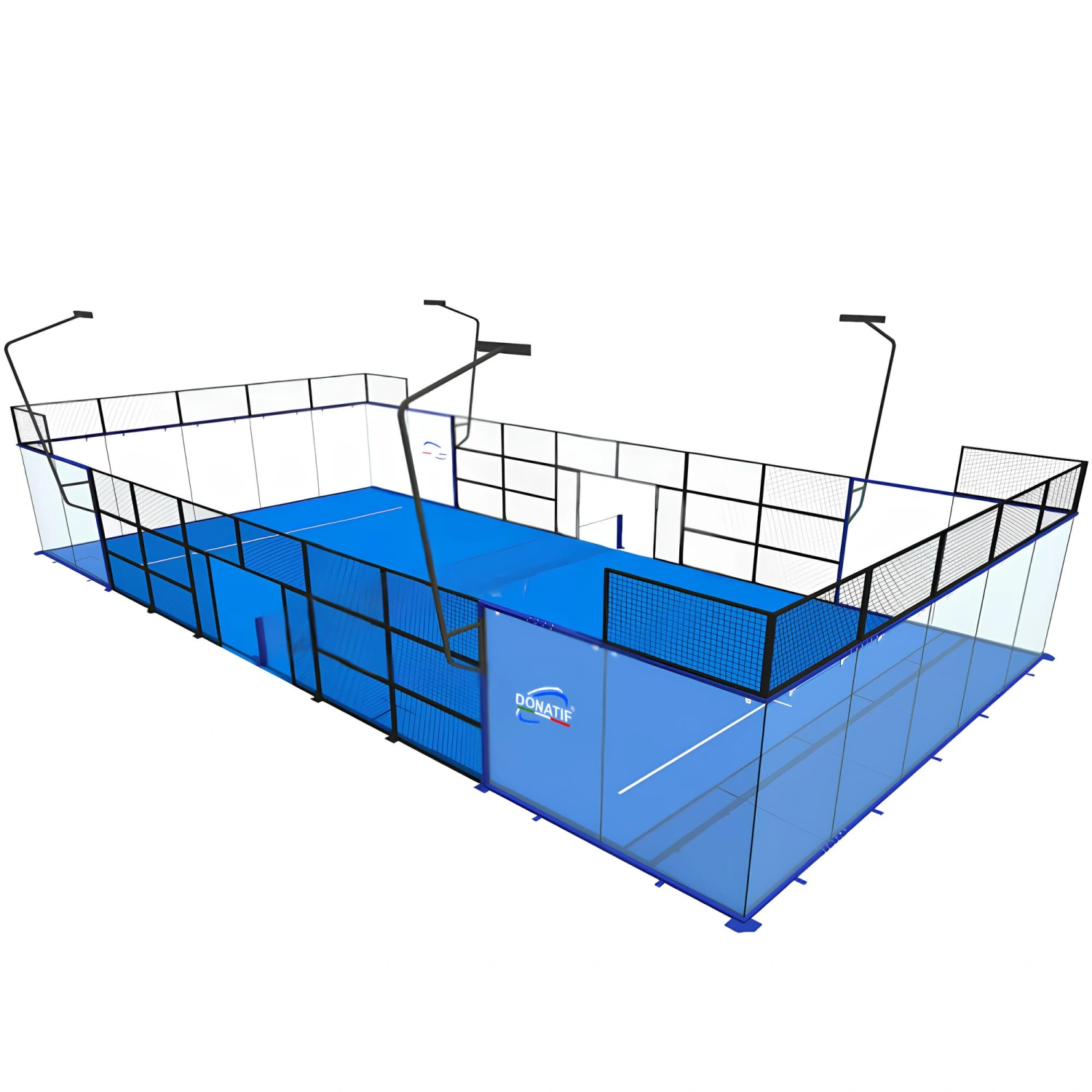

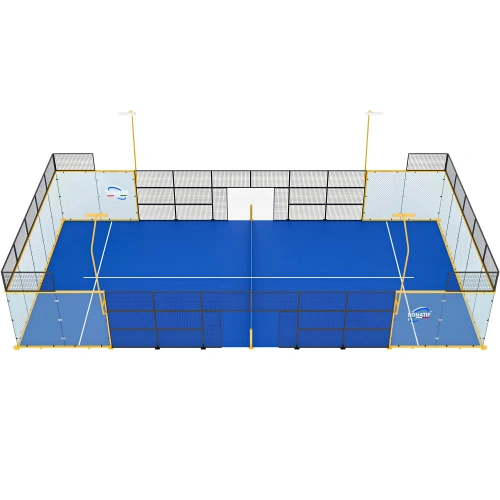

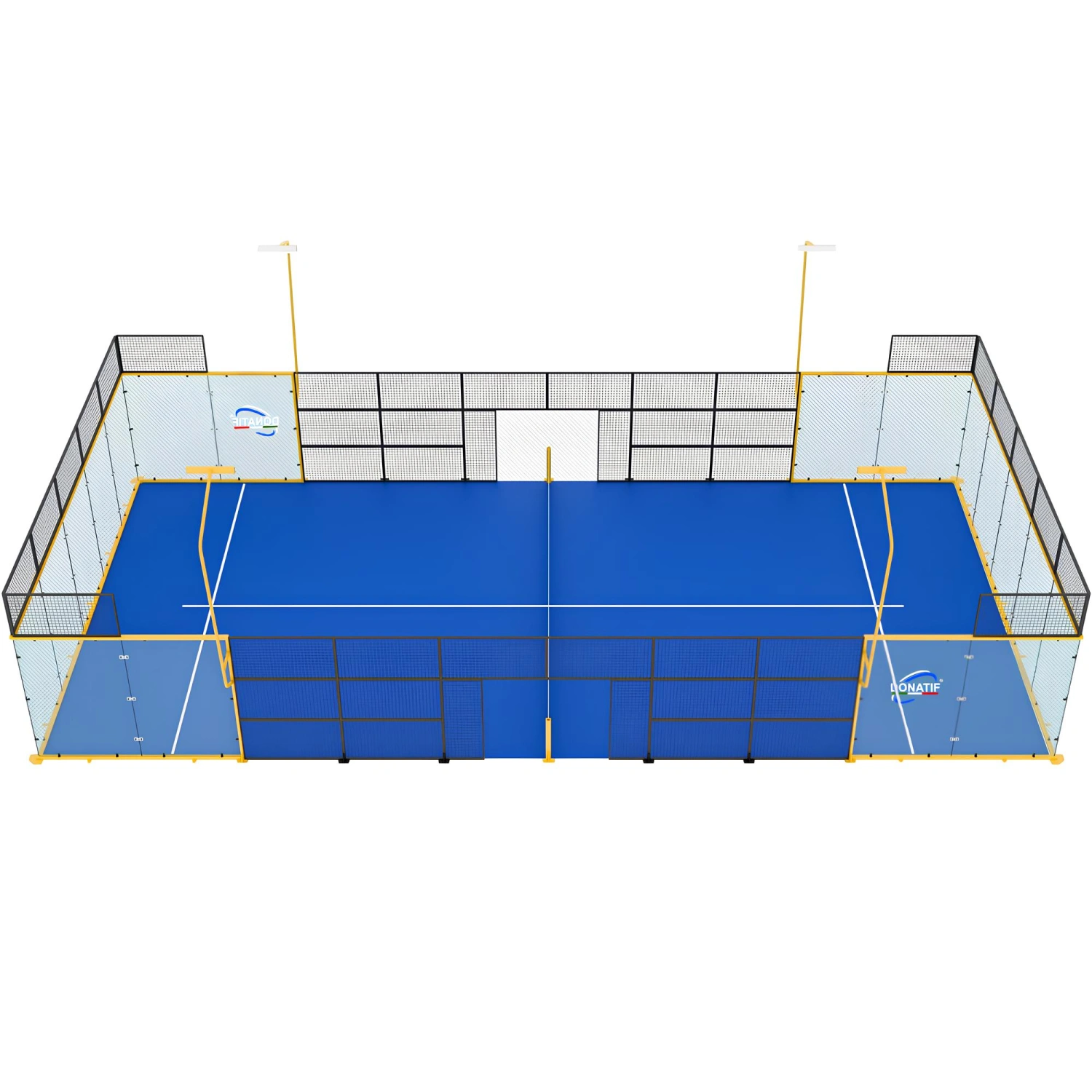

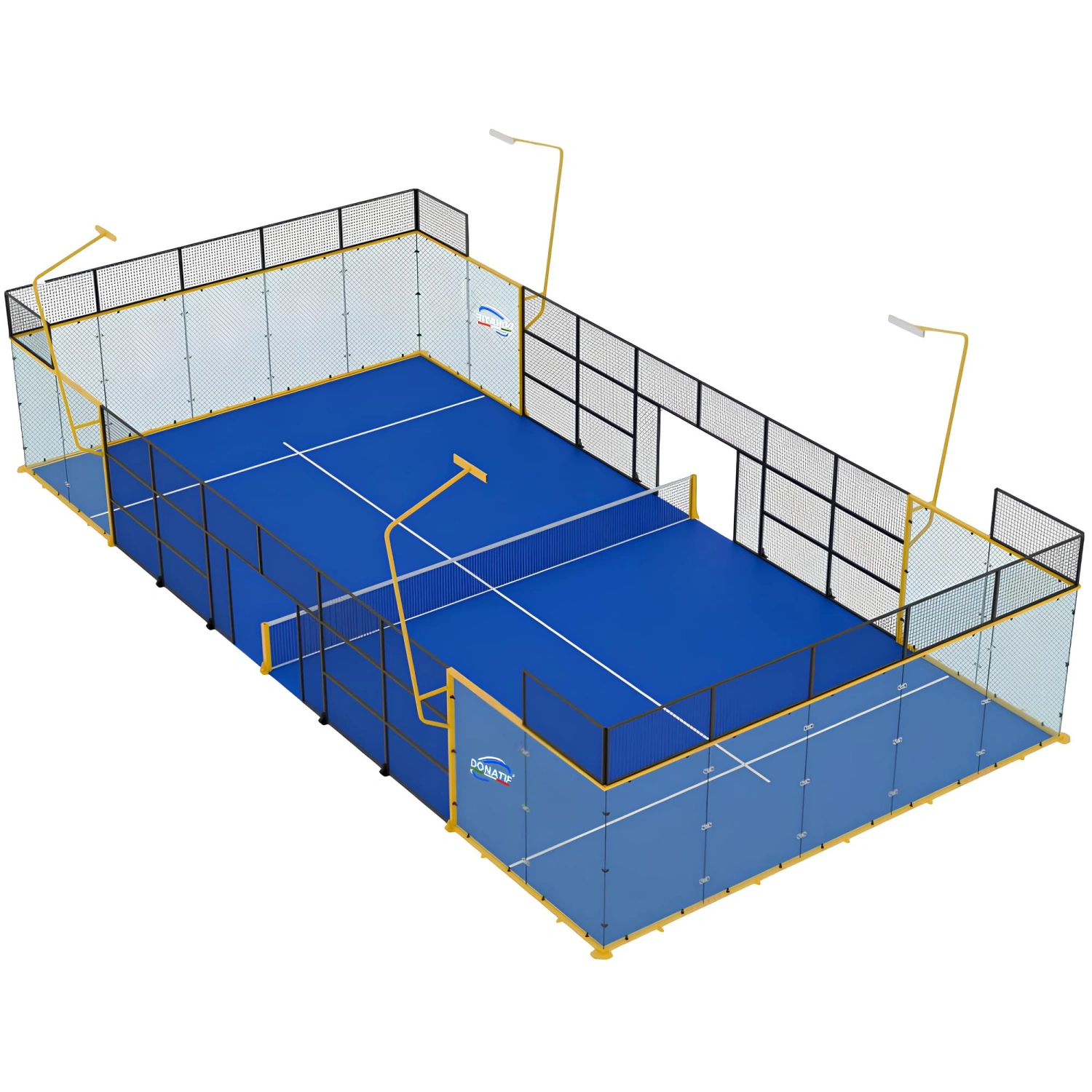

The Panoramic Padel Court represents the ideal choice for those who want a professional-level padel facility that is sturdy, modern and aesthetically impactful. The facility is distinguished by maximum panoramic visibility, thanks to the absence of the corner pillar and the use of 12 mm tempered glass, conforming to EN12150-2:2004. There are 18 1996×3000 mm glass panels that ensure strength and transparency.

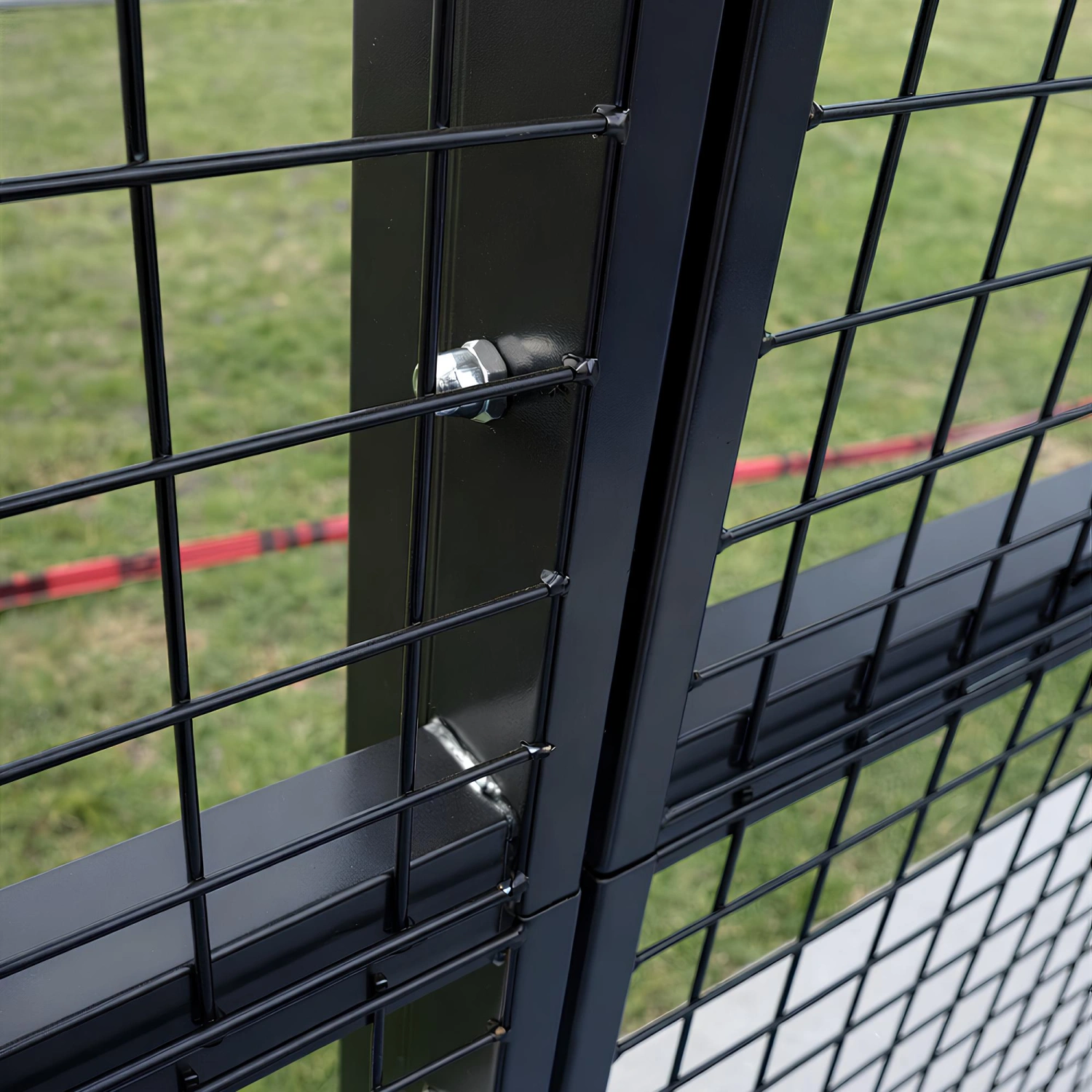

The poles and netting are made of steel, with 4 light poles of 100×100×3 mm and 8 net poles of 100×50×3 mm with a height of 3 mt. The frame is made of 30×50×3 mm Q235 square tube. The wire mesh consists of 46 panels with 4 mm wire and 50×50 mm mesh, framed in curved rod. The soccer field net has 4 mm diameter wire and 50×50 mm mesh. The flooring made of PE KDK curly monofilament yarn, complies with EN14041:2018, with yarn height of 12 mm.

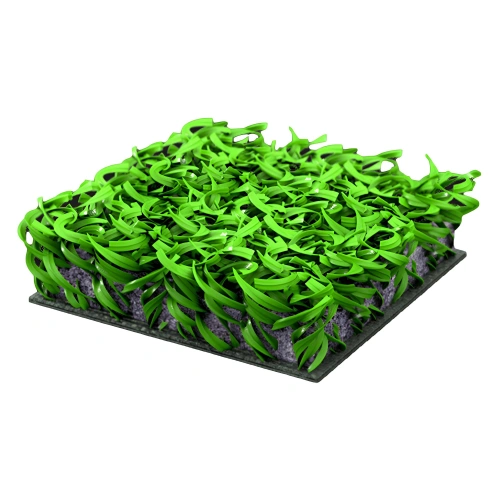

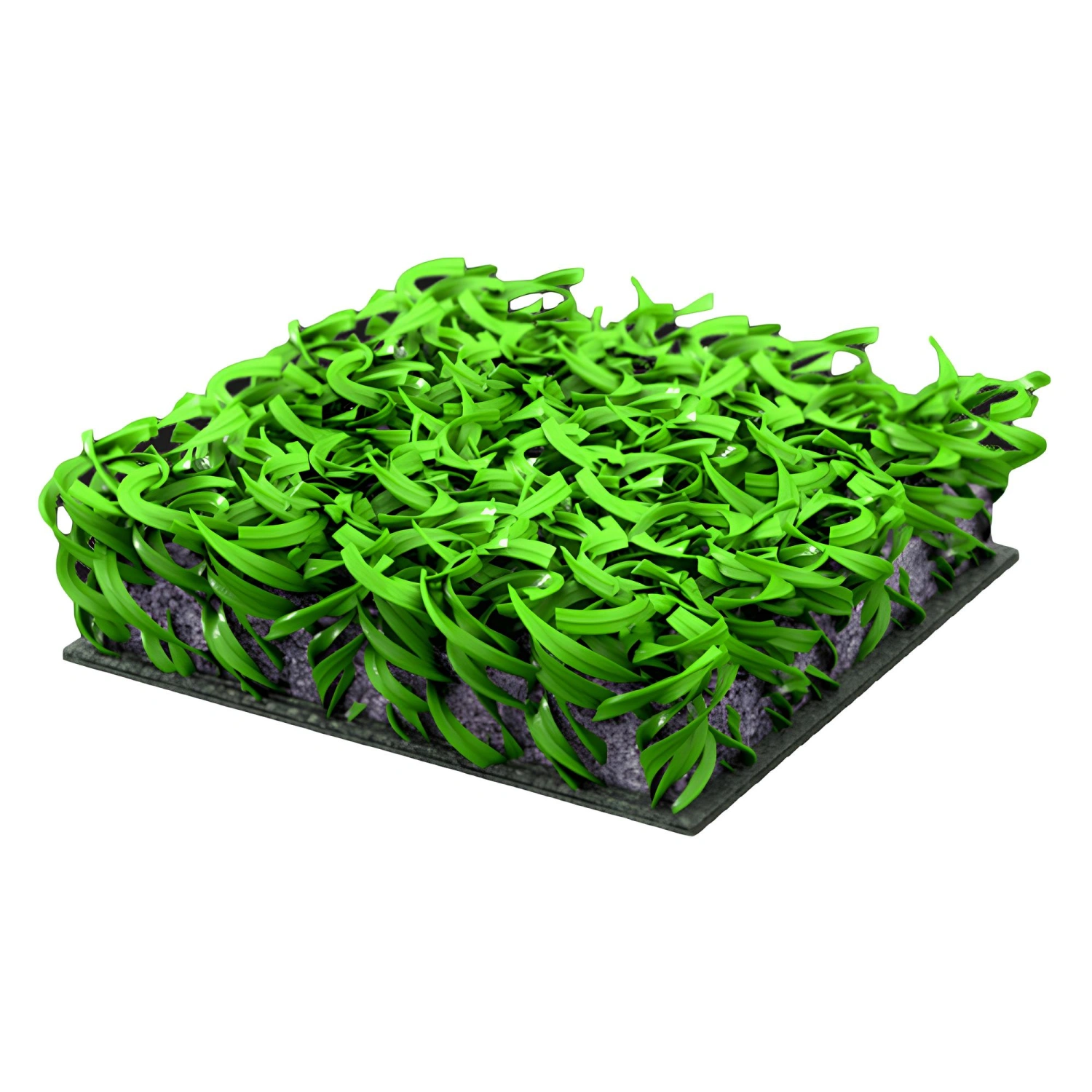

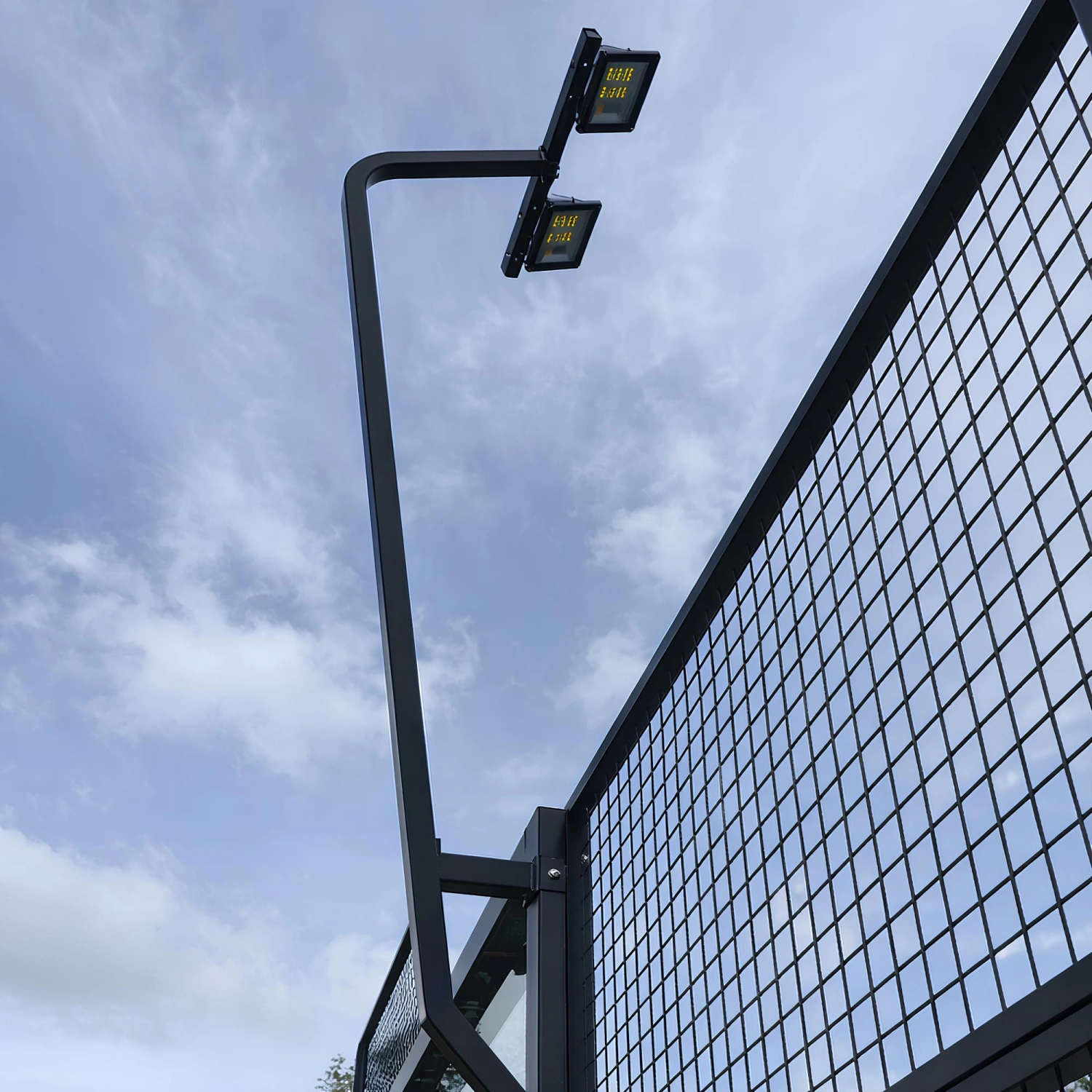

LEDlighting is provided by 4 towers equipped with 8 200W floodlights, ensuring 300 Lux brightness and IP65 protection rating. Standard light poles reach 3 meters but versions up to 6 meters with optional C-style are also available. Completing the installation is a KDK monofilament synthetic grass turf: 12 mm high, density 52,500 dots/m², PP backing + mesh and latex coating. Quartz sand Ø1.6mm-1.25mm ensures an even and optimal fill for playability. Every component, from 304 stainless steel bolts to glass and rubber fittings, is chosen to offer durability, reliability and safety over time.

To complete theoffer, at the customer's request, the court can be made to conform to official FIT (Italian Tennis and Padel Federation) and FIP (Federación Internacional de Padel) standards. All materials are designed to withstand the stresses of intensive use and weathering, ensuring long-term performance.

Note on flooring: The flooring used in padel courts is made of high-quality materials and treated with specific additives and flame retardants, which help to improve its resistance to combustion and reduce the spread of flames in case of fire. Thanks to this formulation, the surface is fire retardant according to the characteristics of the materials used, providing an additional level of safety and compliance with the standards required for sports facilities.

How and where to use our 10x20mt Super Panoramic Padel Court - CP15 | Professional

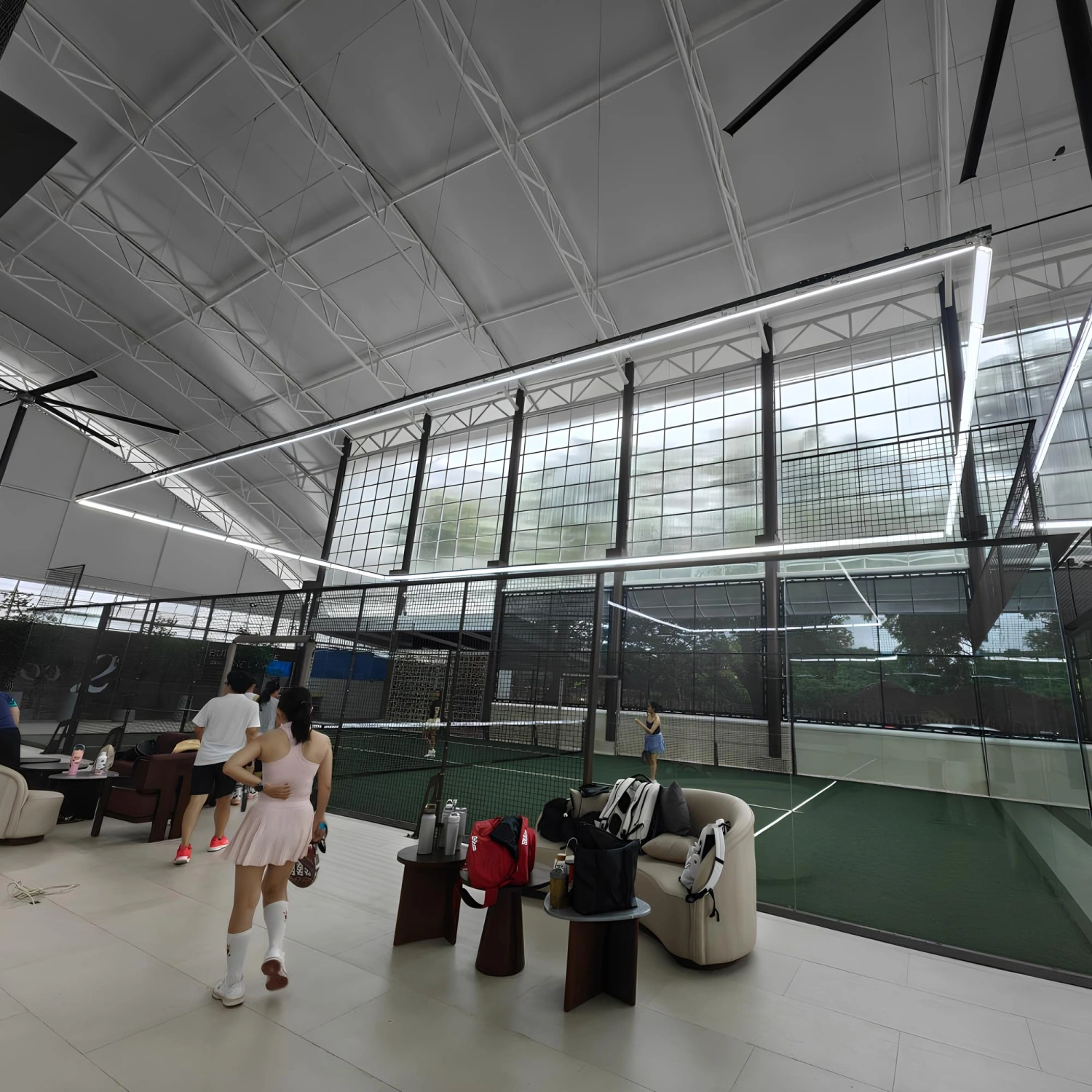

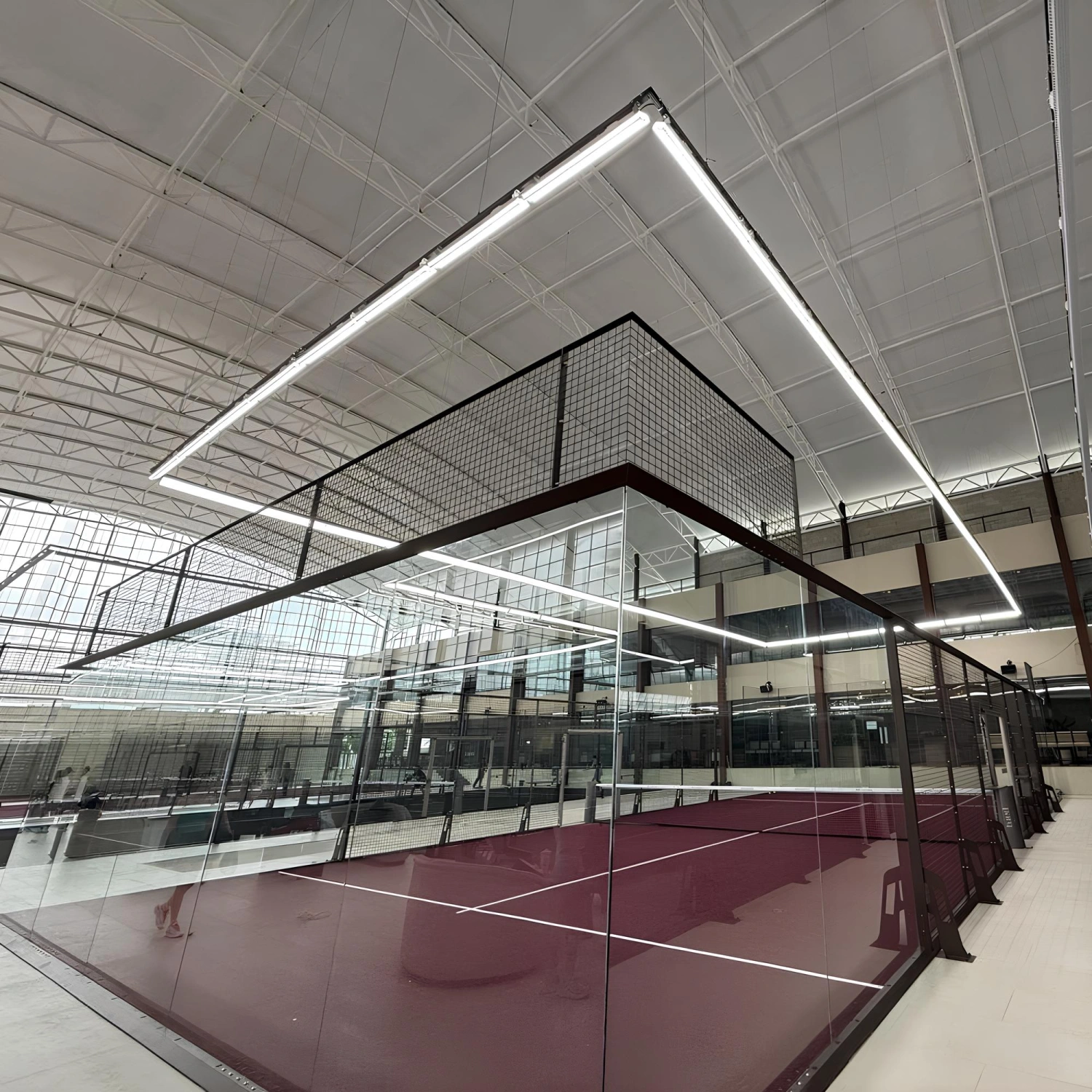

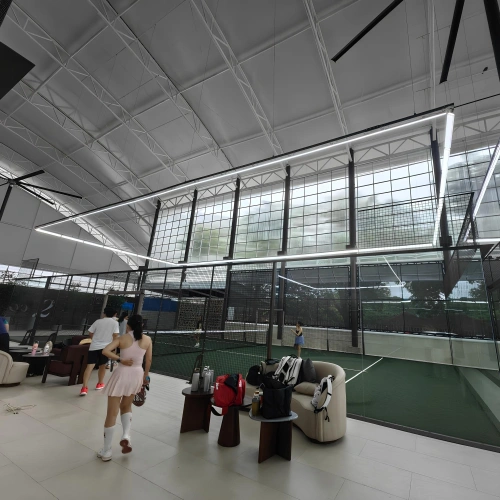

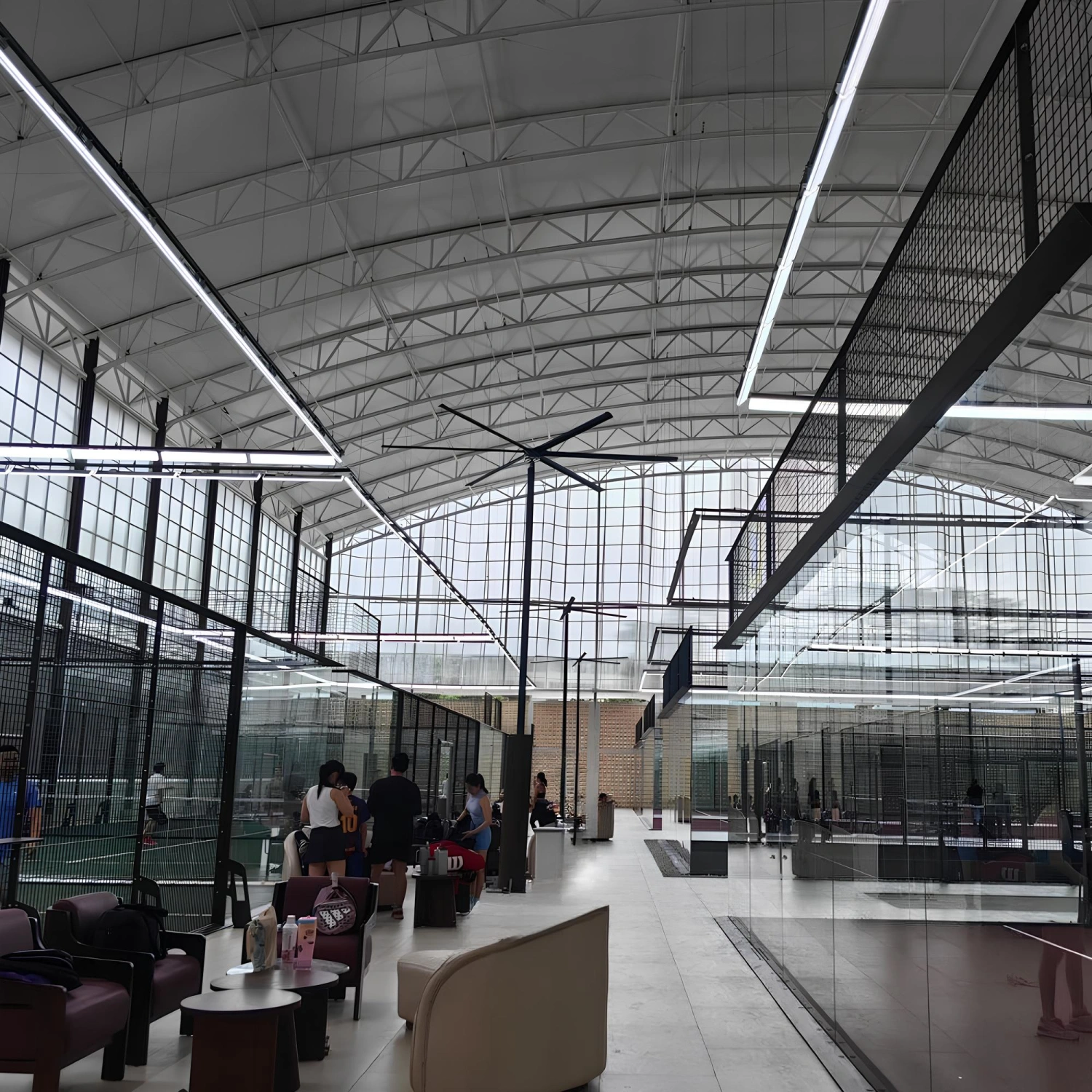

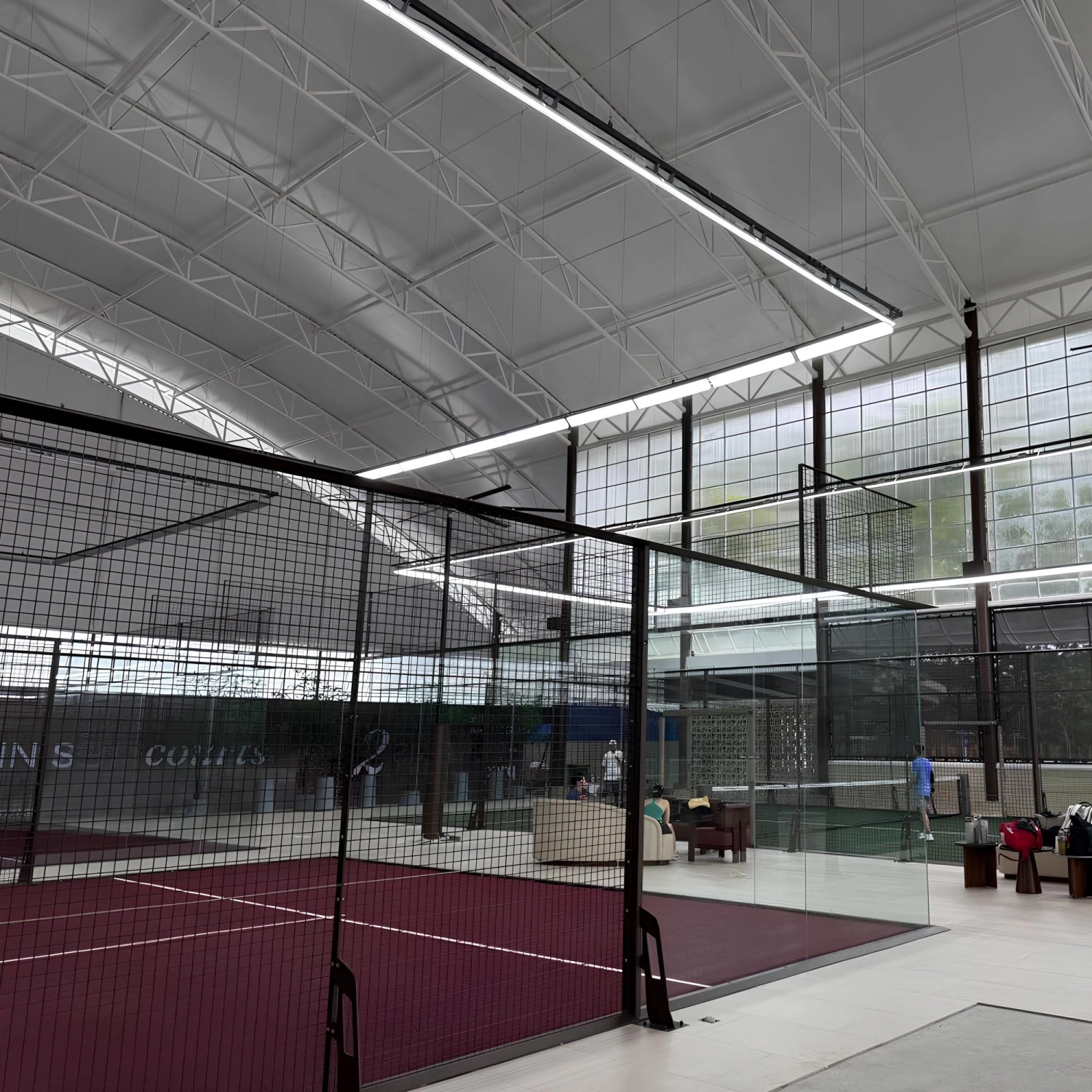

The Super Panoramic Padel Court is designed for installations in professional sports centers, private clubs, hotels, resorts, bathing establishments and public areas dedicated to sports. Thanks to its sturdy and modular structure, the court is perfectly suited for both indoor and outdoor installations. The quality of the materials used - such as Q235 galvanized steel and tempered glass - ensures resistance to weathering, mechanical stress and wear and tear over time.

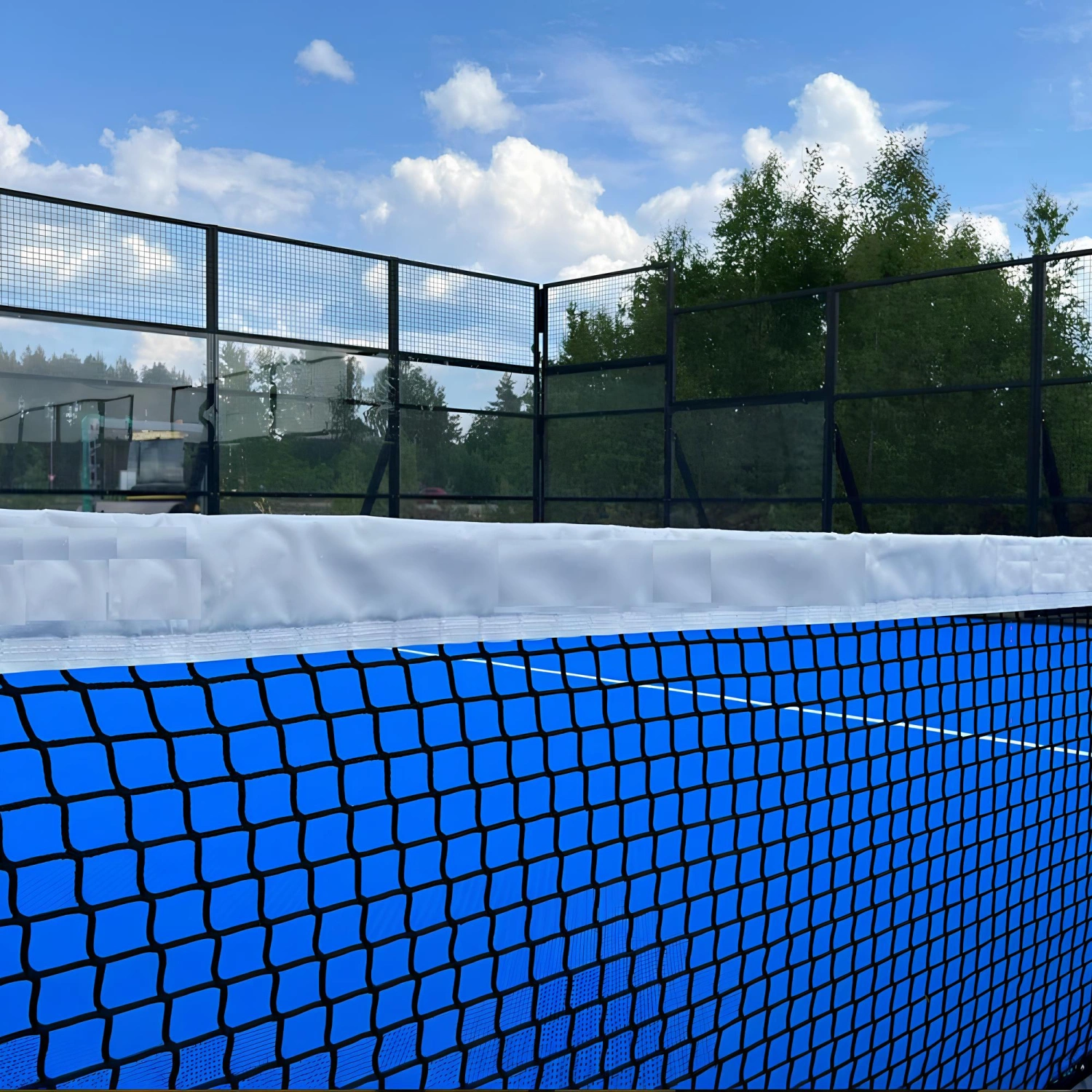

The installation of the synthetic grass mat, which complies with EN14041:2008, ensures excellent rebound and grip performance, ideal for amateur matches and competitive tournaments. The uniform net height, set at 0.88 m in the center and 0.92 m at the ends, ensures full compliance with official playing regulations. Powerful, energy-efficient lighting allows the court to be used even during evening hours, promoting an excellent playing experience at any time of day.

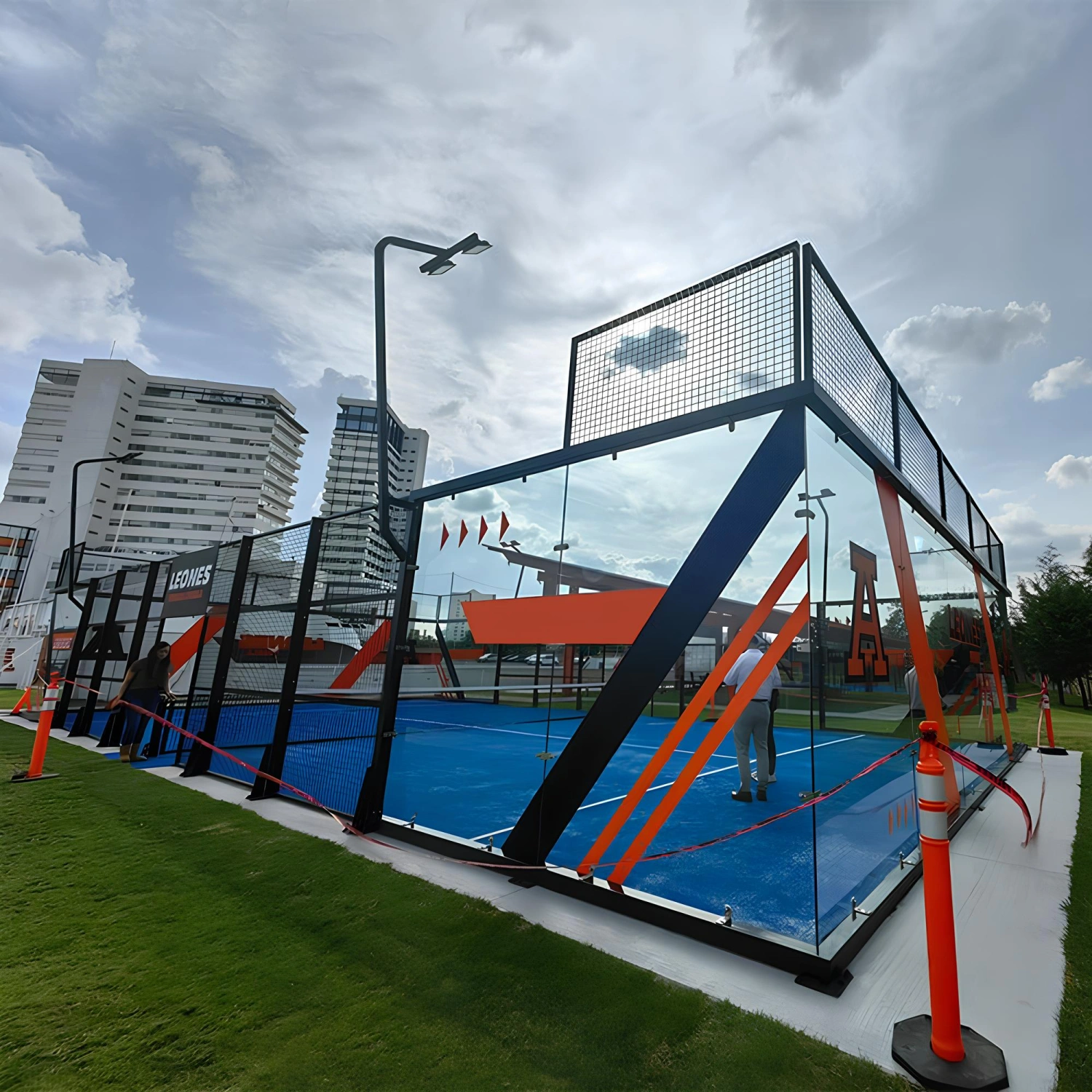

The court is customizable in every aspect, from design to choice of materials. It is made of hot-dip galvanized and powder-coated steel, making it durable and suitable for outdoor use, even in seaside areas. In addition, it can also be used indoors without compromising its quality and durability. Upon request, other accessories can be added, components, dimensions, colors can be changed, and even the customer's logo can be added. The court is 100% customizable, ensuring tailor-made solutions for every need.

Why choose our 10x20mt Super Panoramic Padel Field - CP15 | Professional

Choosing the Panoramic Padel Field means relying on a complete professional solution designed to ensure maximum aesthetic, functional and sporting performance. Every detail is designed to meet the highest criteria in terms of safety, quality and design. From the transparency and sturdiness of the tempered glass to the stability of the net and steel structure, to the high-performance KDK synthetic turf: each element is the result of careful selection and complies with European standards. The field is also panoramic, so there are no uprights between the glass or uprights at the corners.

The field is designed to be durable and require minimal maintenance, even in challenging weather conditions. The corner pillar-less structure ensures an unobstructed view and a modern look, highly appreciated by architects, designers and investors in the sports industry.
A unique product, entirely Designed in Italy, where style, functionality and passion come together. In addition, for an extra charge you can request assembly service available throughout Italy andabroad, even on holidays. We will take care of a quick and stress-free installation.
