Single Squash Court - PLB10 | Professional

Features of our Single Squash Court - PLB10 | Professional

The indoor single squash court is designed to meet the main technical specifications required for intensive sports use. The dimensions of 9x6x4mt offer expanded playing space compared to single courts, providing greater freedom of movement and adapting perfectly to four-player matches. The system integrates advanced technical solutions also derived from professional single court configurations, ensuring high standards in strength, safety and performance.

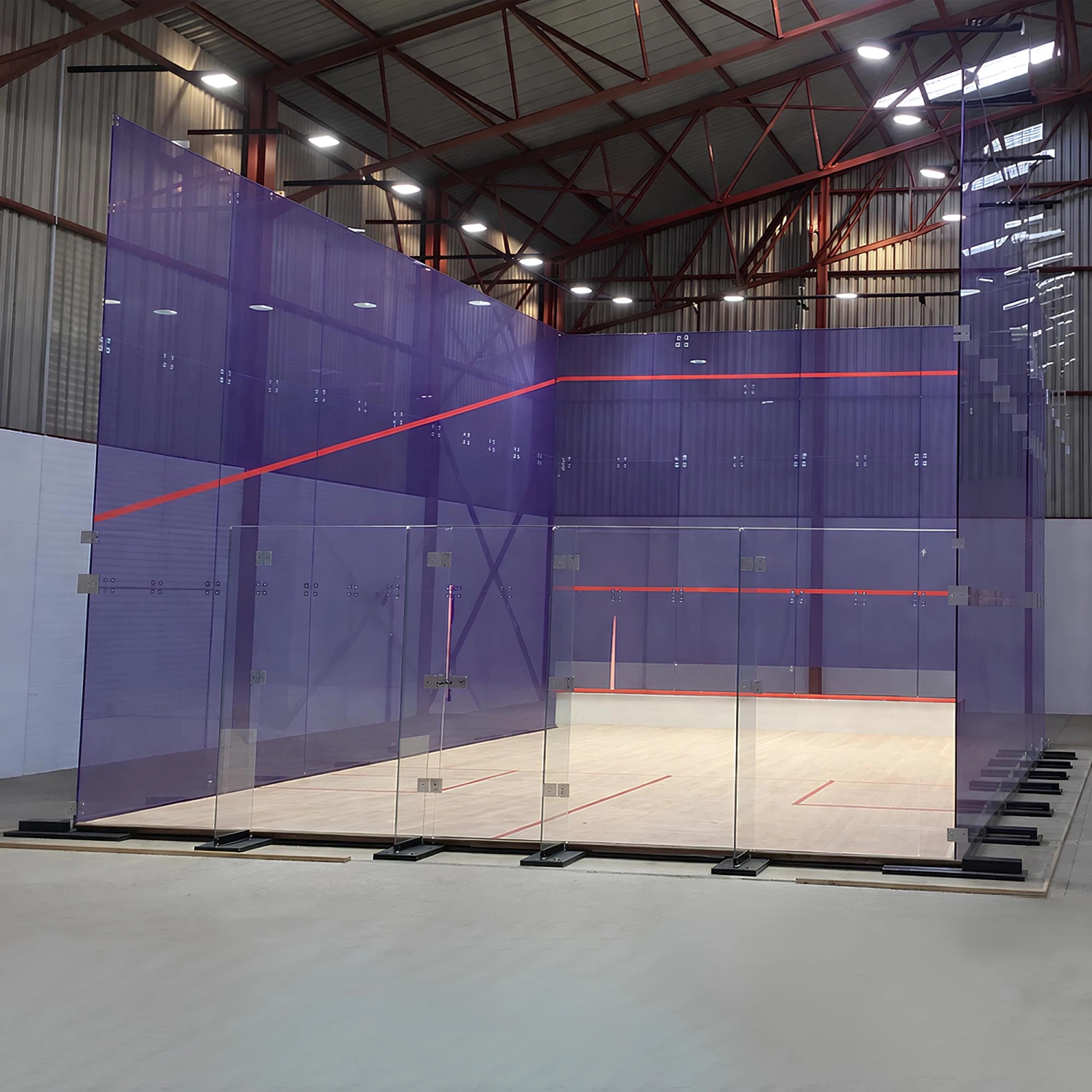

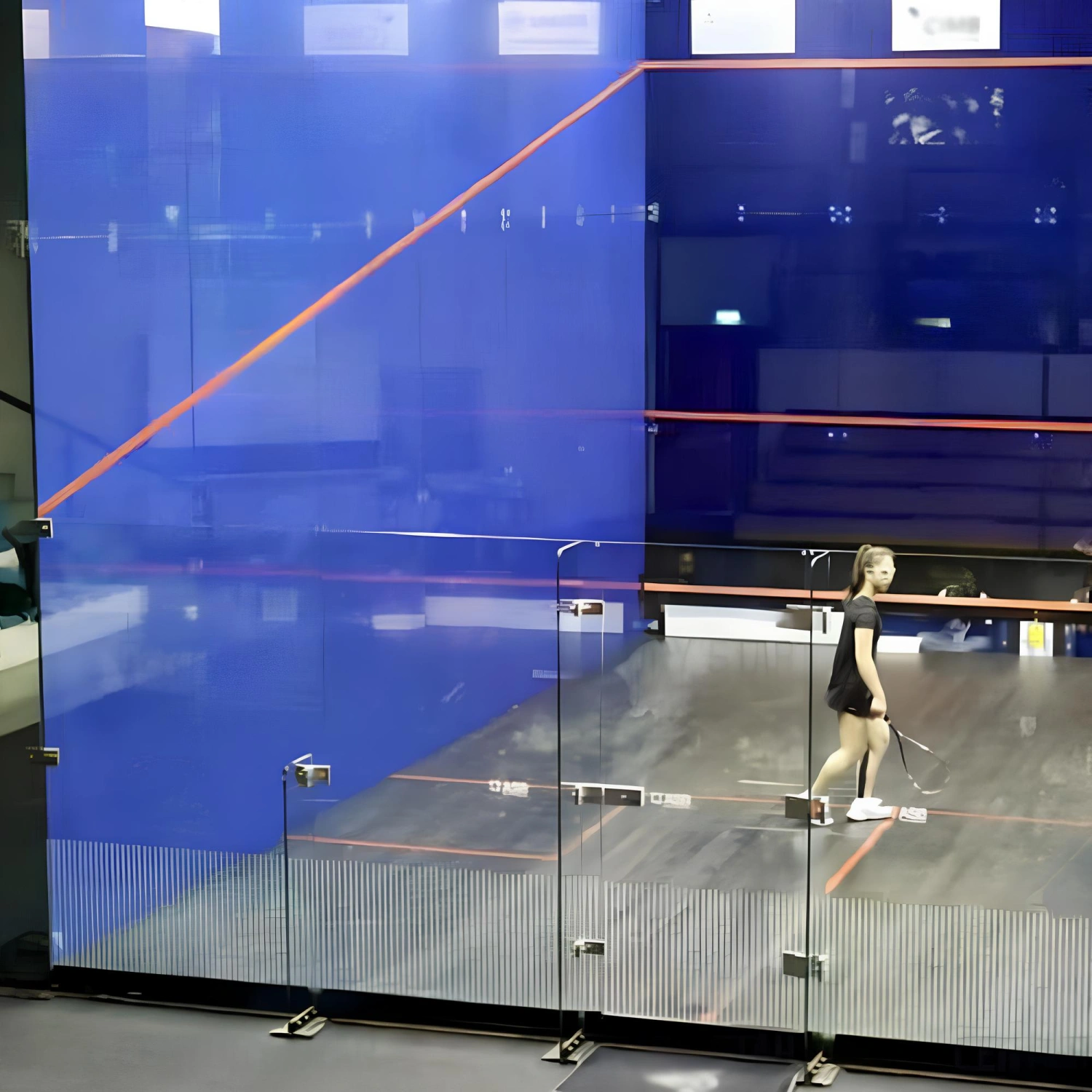

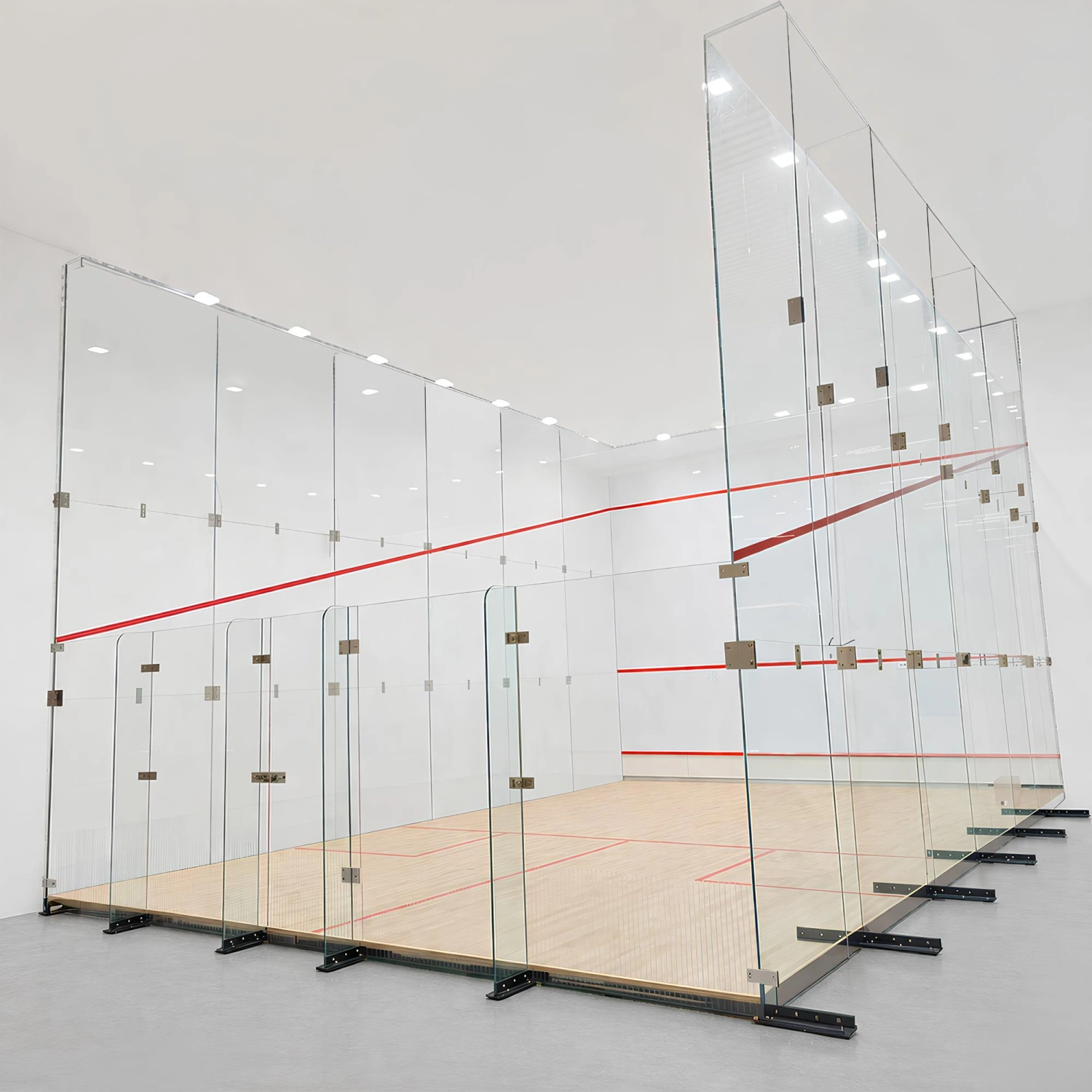

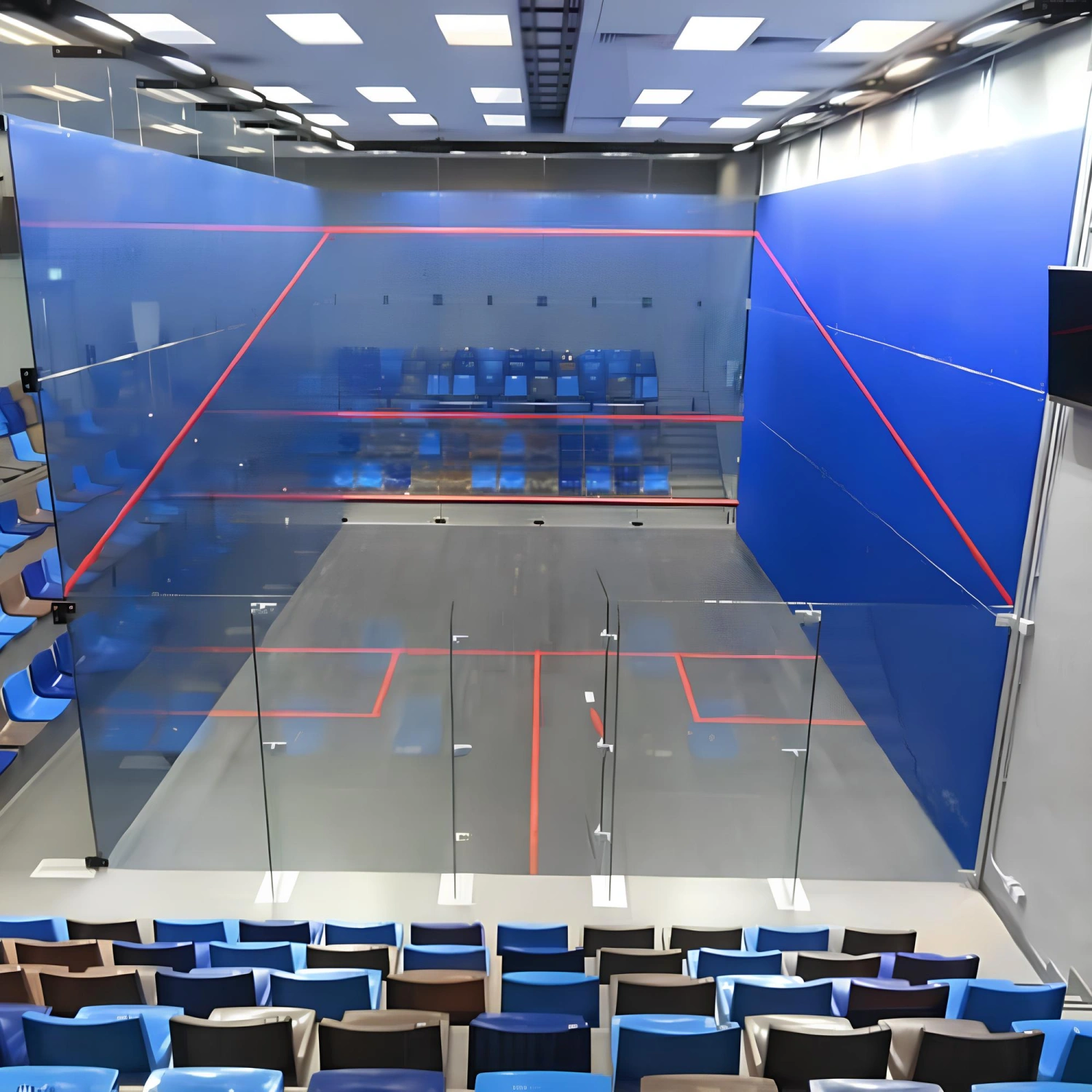

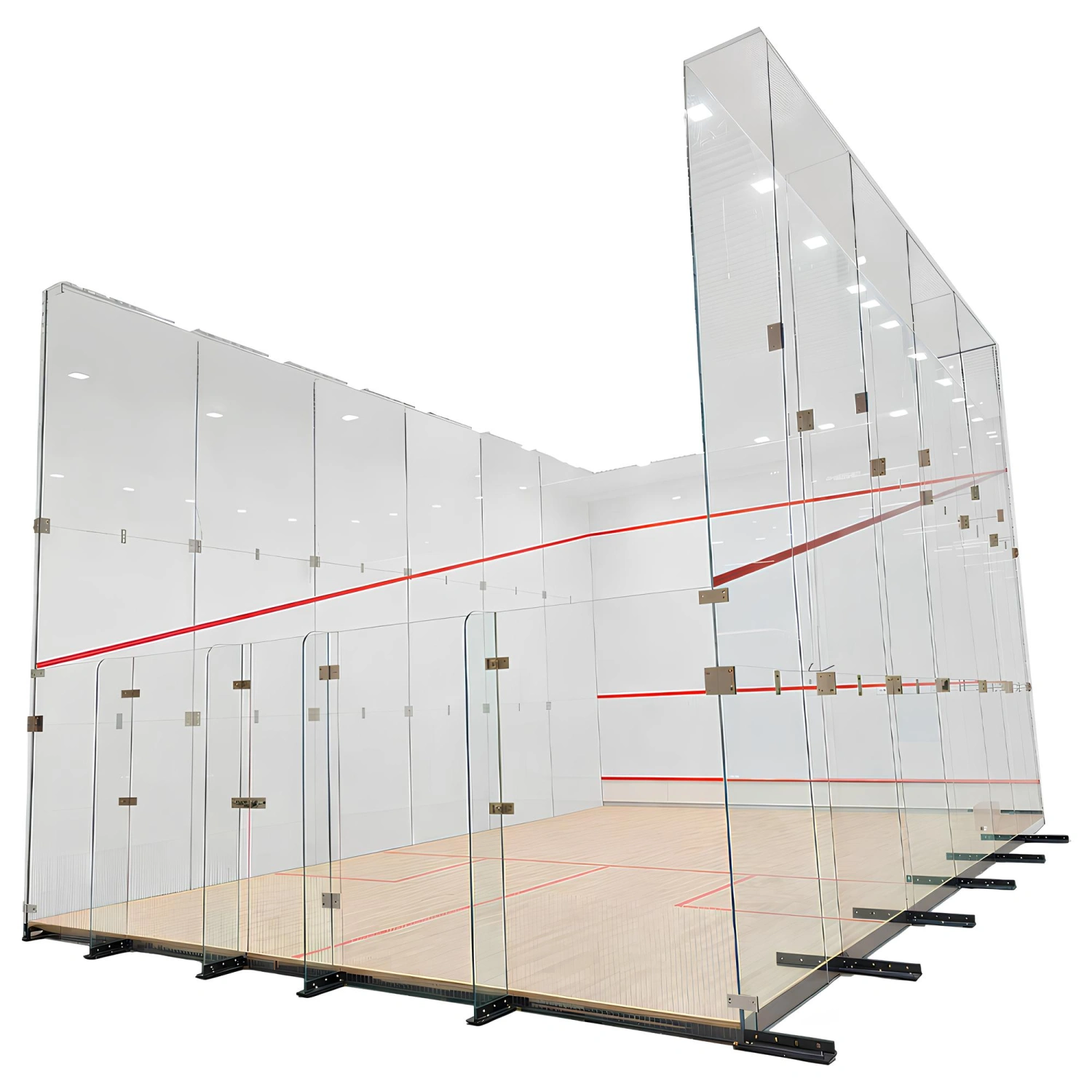

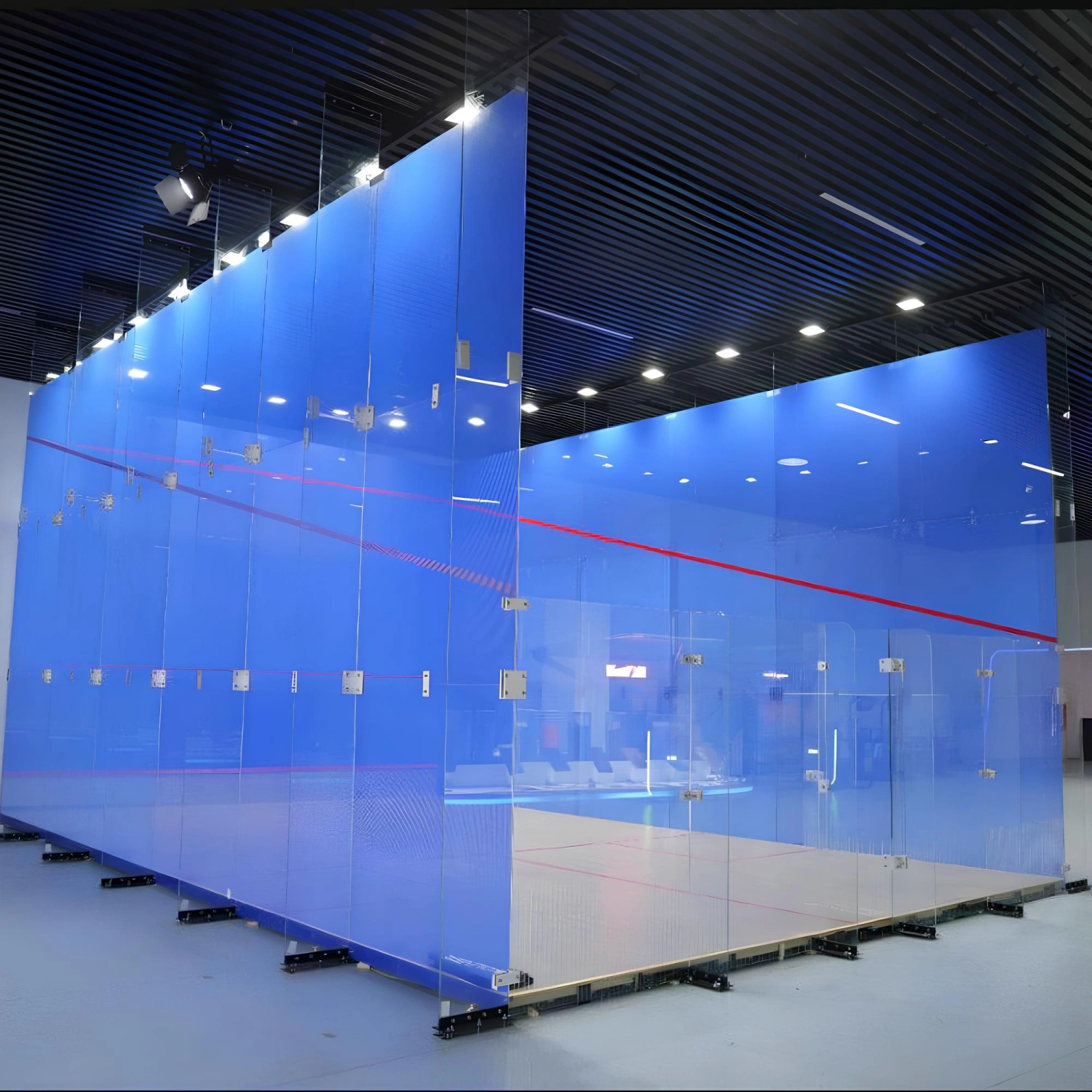

4-sided tempered glass structure

The fully glazed structure transforms the court into a modern architectural element as well as a sporting one. The system uses 12 mm tempered glass that is certified(CE, UDEM, EN 12150:2004), ensuring safety, durability and impact resistance. The front wall presents 5250 mm height with blue finish and wide surface, while the side walls follow the same technical standard with overall extension up to 103 m², ensuring visual continuity and playing quality.

Glass uprights (height 5700 mm, transparent) and tempered glass back wall complete the structural system, with technical dimensions optimized for stability and integration. Hardware includes oxidized aluminum alloy components, locks, hinges, mounting plates and professional installation accessories.

Wooden sports flooring included

The wooden sports flooring system is designed to offer high performance in terms of rebound, stability and safety. The structure consists of a 22 mm maple/ birch top layer supported by 40×50 mm pine joists and a 12 mm plywood base. This is complemented by a 15 mm special elastic mat, which improves shock absorption and comfort during play.

The modular system has dimensions 1805×950 mm with spacing between modules of 25 mm, a structural height of 90 mm, and requires a base with flatness ≤ 3 mm. This configuration, which complies with EN 14904:2009, ensures a uniform and durable surface, ideal for intensive use in professional environments.

Professional LED lighting system

Professional LED lighting ensures even light distribution, eliminating shadow areas and improving visibility during play. The system operates with 100W working voltage and a total light output of up to 220W, ensuring high performance even under intensive use.

Equipped with IP65 protection rating, the system is resistant to dust and moisture. The recommended installation height is between 5 and 6 meters, with a light coverage per lamp of 20-25 m. The use of Inventronics power supplies and Philips LED chips ensures reliability, energy efficiency, and a 5-year warranty.

How and where to use our Single Squash Court - PLB10 | Professional

The indoor squash court is designed for indoor installations where temperature, humidity and lighting can be controlled, ensuring consistent performance and longer material life. This configuration is ideal for sports centers, clubs, and fitness facilities that wish to offer professional and continuous service.

The system is mainly suitable for indoor settings, but can also be installed outdoors with adequate coverage. Thanks to its modular structure and certified materials, it is a versatile and reliable solution for multi-sport facilities that want to expand their offerings with a dynamic, high-intensity sport such as squash.

Why choose our Single Squash Court - PLB10 | Professional

Choosing this court means investing in a complete solution designed for efficiency, durability and high performance. All components, from flooring to glazing to lighting, are designed to work in synergy, reducing installation time and risk of incompatibility.

Maintenance is simple and focuses on cleaning surfaces, checking structures, and checking the lighting system. In addition, with Donatif you have access to a complete service: personalized assistance, custom design, fast shipping and installation throughout Italy and abroad, even on holidays. An ideal choice for those seeking professional quality and reliability over time.
